Φ12O-6OW Forward Centrifugal Fan

Inquiry Form

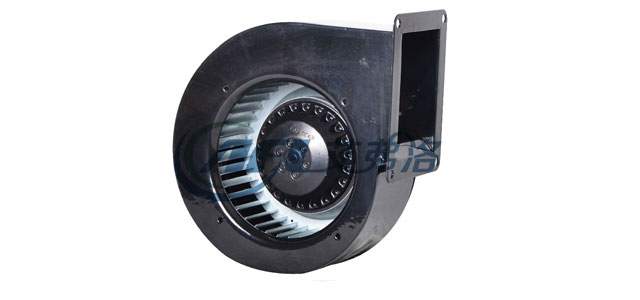

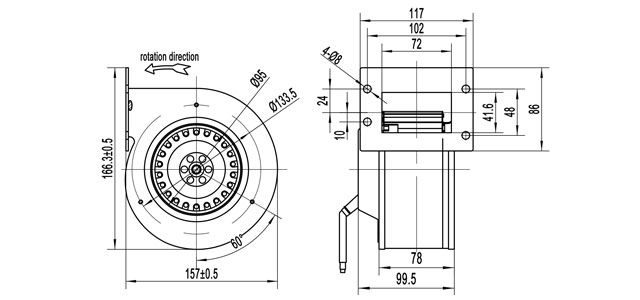

120-60Z-datu 120-60Z-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E120-060W-AA01 220/230 50 0.27 58 2400 1.5 200/120 51 -30/+60 CCC,CE,RoHS
220/230 60 0.33 73 2500 1.5 210/l24 53 -30/+60 CCC,CE,RoHS

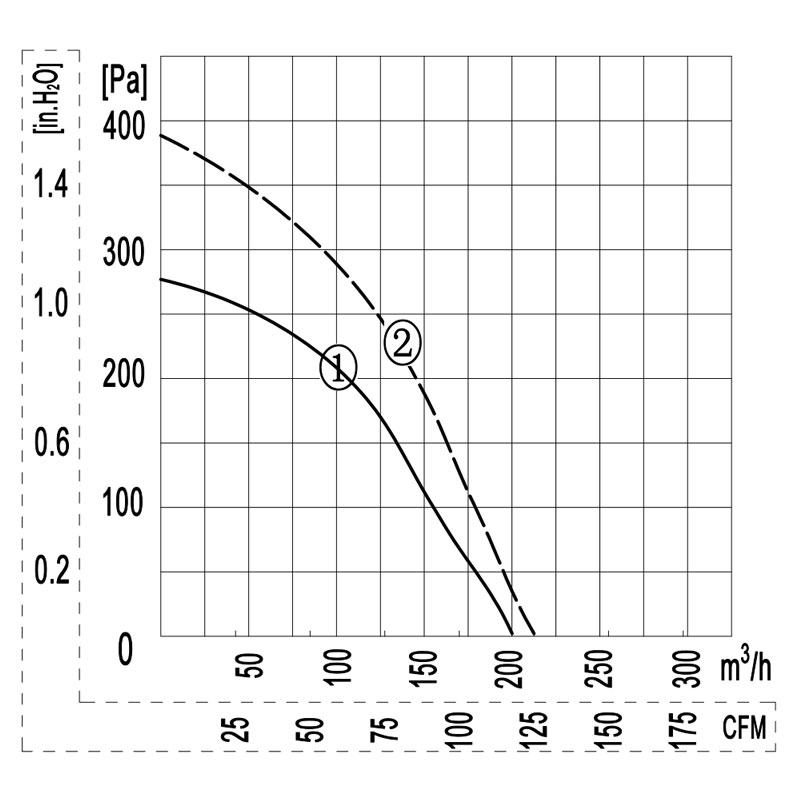

120-60Z-quxian
