Home / Products / Axial fan / AC axial fan / A250-7 External Rotor Motor Axial Fan

A250-7 External Rotor Motor Axial Fan

Inquiry Form

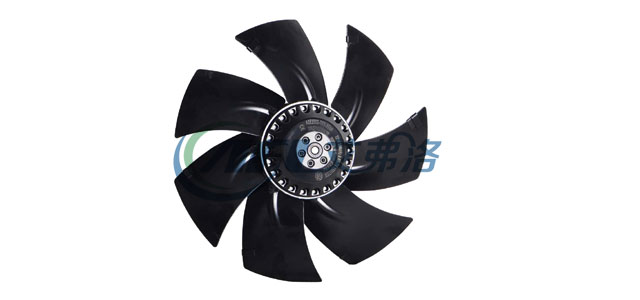

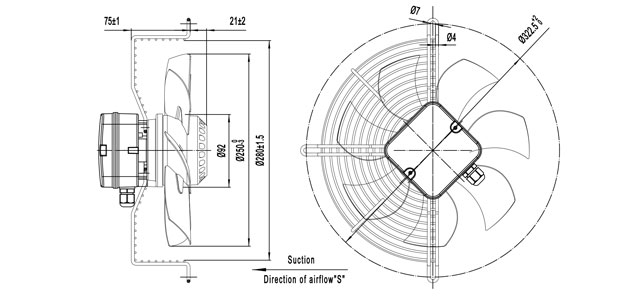

250-7-datu 250-7-erwei

material:Cold rolled steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A2E250S-5DM-AC00 220/230 50 0.50 110 2500 3 1600 / 941 65 -30/ +60 CCC,CE,RoHS
60 0.65 130 2600 1800 / 1058 67
A2D250S-5DM-AC00 380/400 50 0.18 100 2500 / 1600 / 941 65 -30 / +60 CCC,CE,RoHS
60 0.22 130 2600 1800 / 1058 67
A4E250S-7DM-AC00 220/230 50 0.25 50 1400 2 950 / 559 53 -30 / +60 CCC,CE,RoHS
60 0.27 60 1650 1100 / 647 54
A4D250S-7DM-AC00 380/400 50 0.14 50 1400 / 950 / 559 53 -30 / +60 CCC,CE,RoHS
60 0.18 60 1650 1100 /647 54

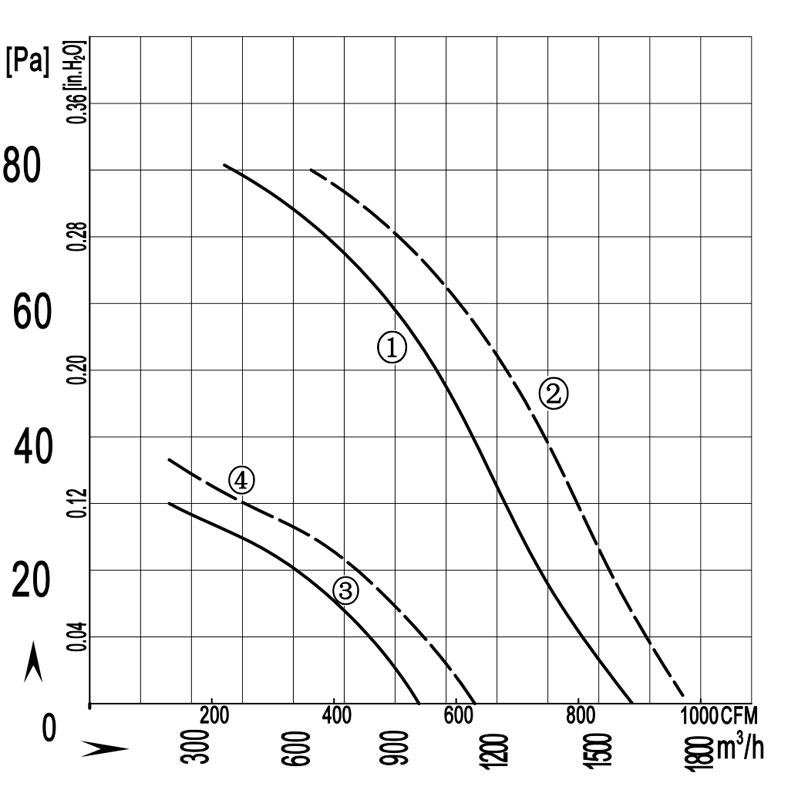

250-7-quxian
