A250-7K External Rotor Motor Axial Fan

Inquiry Form

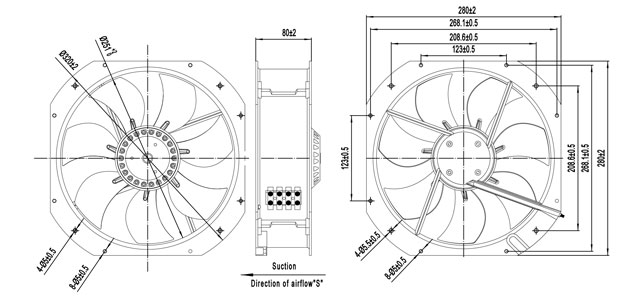

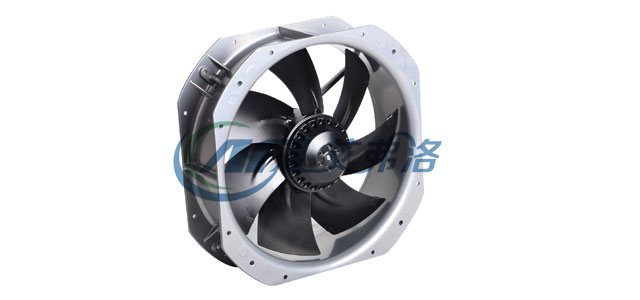

250-7K-datu 250-7K-erwei

material:Cold rolled steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

  Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals

Type

V

Hz

A

W

rpm

uF

m3/h/CFM

dB(A)

Min/Max(℃)

#



A2E250S-5KN-ACJ0

220/230

50

0.42

90

2600

3

1600 / 941

66

-30/ +60

CCC,CE,RoHS

60

0.55

115

2900

1800 / 1058

67

A2D250S-5KN-AC00

380/400

50

0.20

100

2500

/

1600 / 941

66

-30/+60

CCC,CE,RoHS

60

0.22

130

2600

1800 / 1058

67

A4E250S-7KN-AC00

220/230

50

0.25

50

1400

2

950 / 559

53

-30/ +60

CCC,CE,RoHS

60

0.30

55

1620

1100 / 647

54

A2E250S-7KN-AEJ0

220/230

50

0.60

130

2700

4

2100 / 1235

68

-30/+60

CCC,CE,RoHS

60

0.70

170

2900

2250 / 1323

69

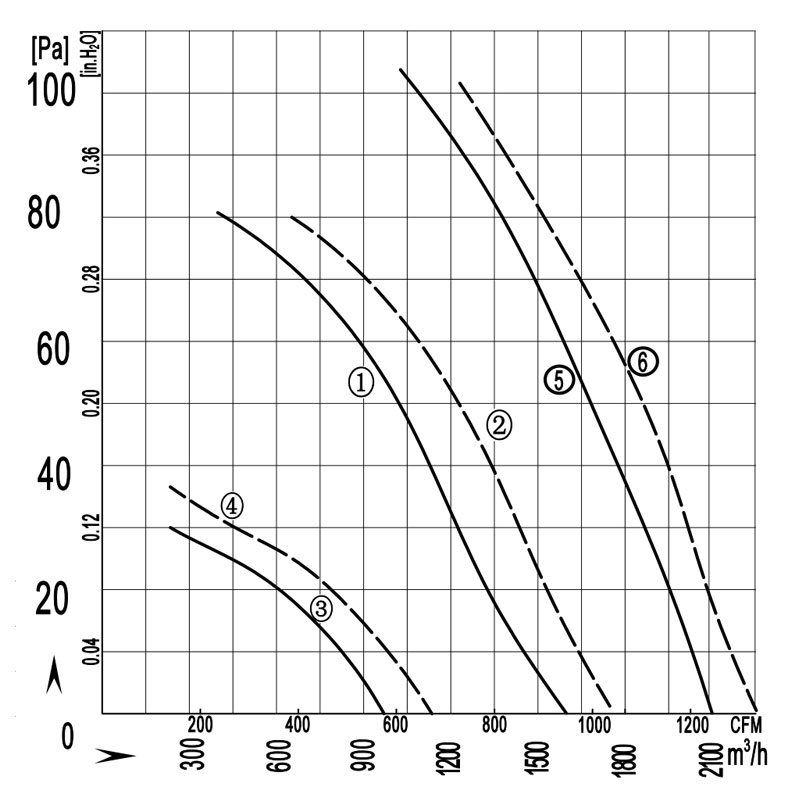

250-7K-quxian
