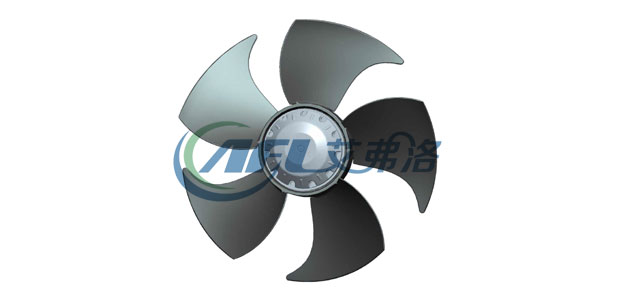

A295-5 External Rotor Motor Axial Fan

Inquiry Form

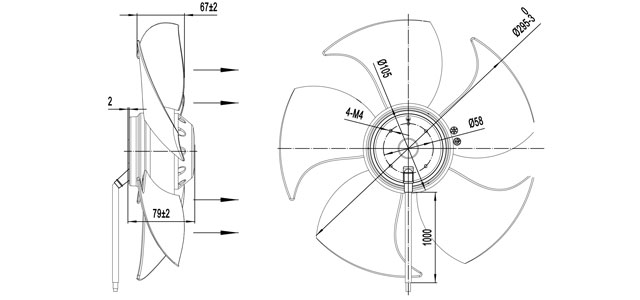

295-5-datu295-5-erwei

material:Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E295B-5AN-AC00 220/230 50 0.25 53 1250 2 1400 / 823 45 -30/+60 CCC,CE,RoHS
A4E295B-5AN-AE00 220/230 50 0.25 80 1400 3 1550 / 911 48 -30/+60 CCC,CE,RoHS

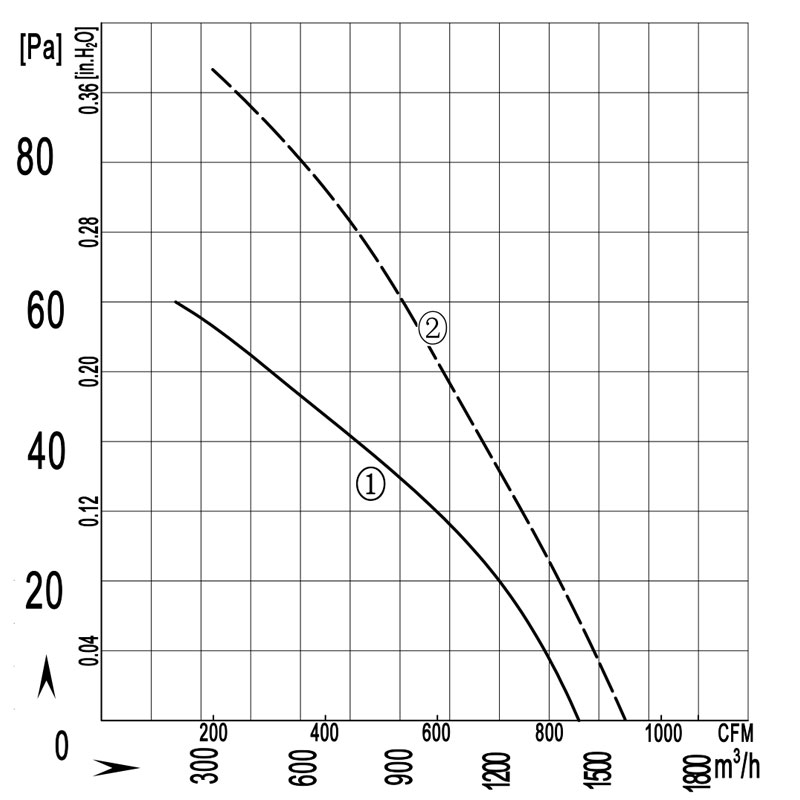

295-5-quxian
