A400-5 External Rotor Motor Axial Fan

Inquiry Form

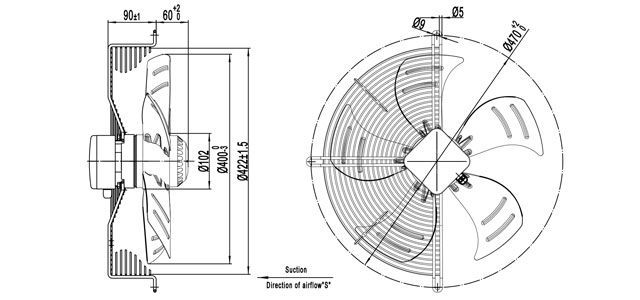

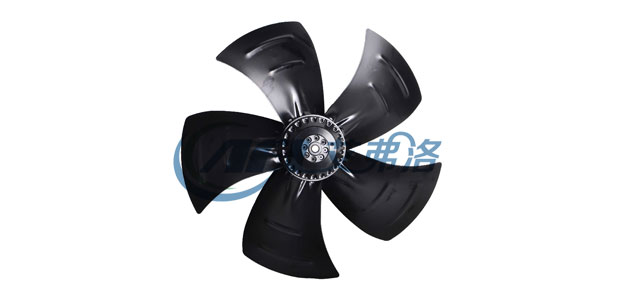

400-5-datu 400-5-erwi

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E400S-5DM-AM00 220/230 50 0.90 185 1350 6 3700 2176 60 -30/ +60 CCC,CE,RoHS
60 1.22 260 1580 4100 2411 62
A4D400S-5DM-AM00 380/400 50 0.50 185 1370 / 3700 2176 60 -30/ +60 CCC.CE.RoHS
60 0.47 240 1620 4100 2411 62
A6E400S-5DM-AM00 220/230 50 0.50 110 950 4 2600 1530 55 -30/+60 CCC.CE.RoHS
60 0.54 120 1100 3000 1765 57
A6D400S-5DM-AM0Q 380/400 50 0.31 110 930 / 2600 1530 55 -30 / +60 CCC,CE,RoHS
60 0.31 120 1100 3000 1765 57

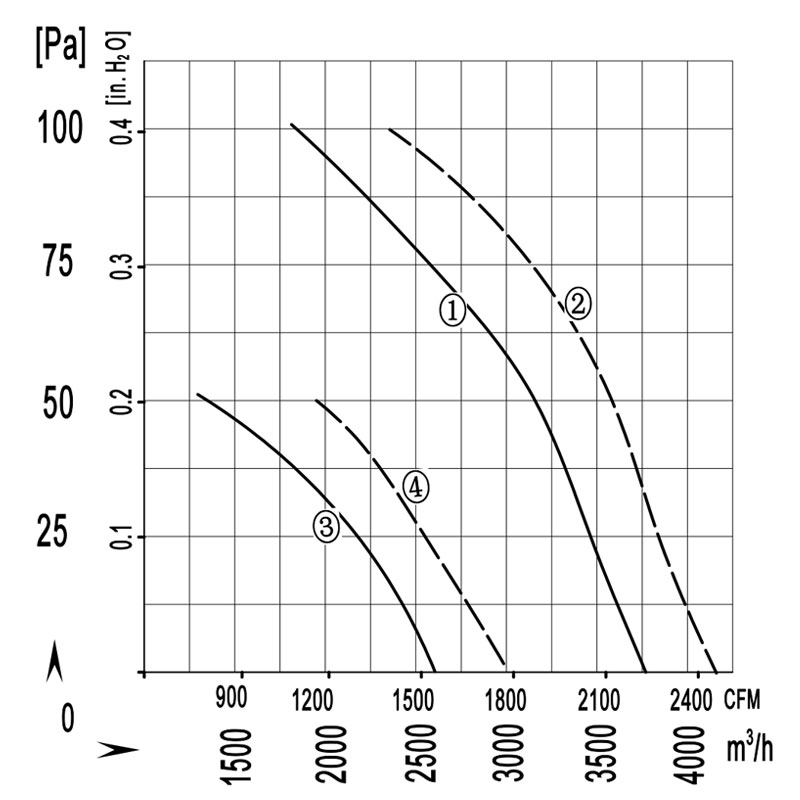

400-5-quxian
