A420-5R External Rotor Motor Axial Fan

Inquiry Form

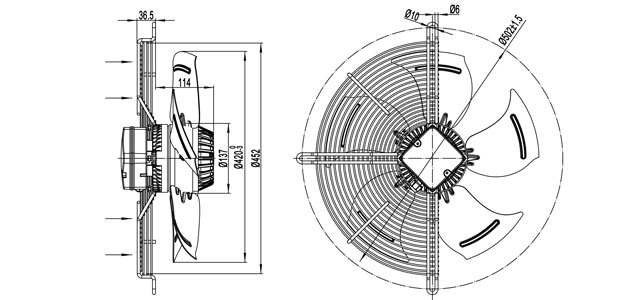

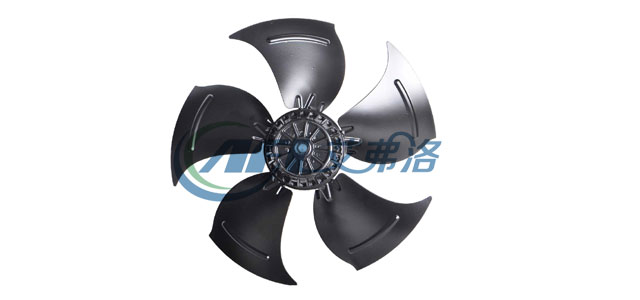

420-5R-datu 420-5R-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E420B-5DM-AR00 220/230 50 1.30 300 1350 6 5300 / 3117 65 -30/ +60 CCC.CE.RoHS
60 1.80 400 1580 5800 / 3411 68
A4D420B-5DM-AR00 380/400 50 0.65 280 1370 1 5300 / 3117 65 -30/ +60 CCC.CE.RoHS
60 0.90 380 1600 5800 / 3411 68

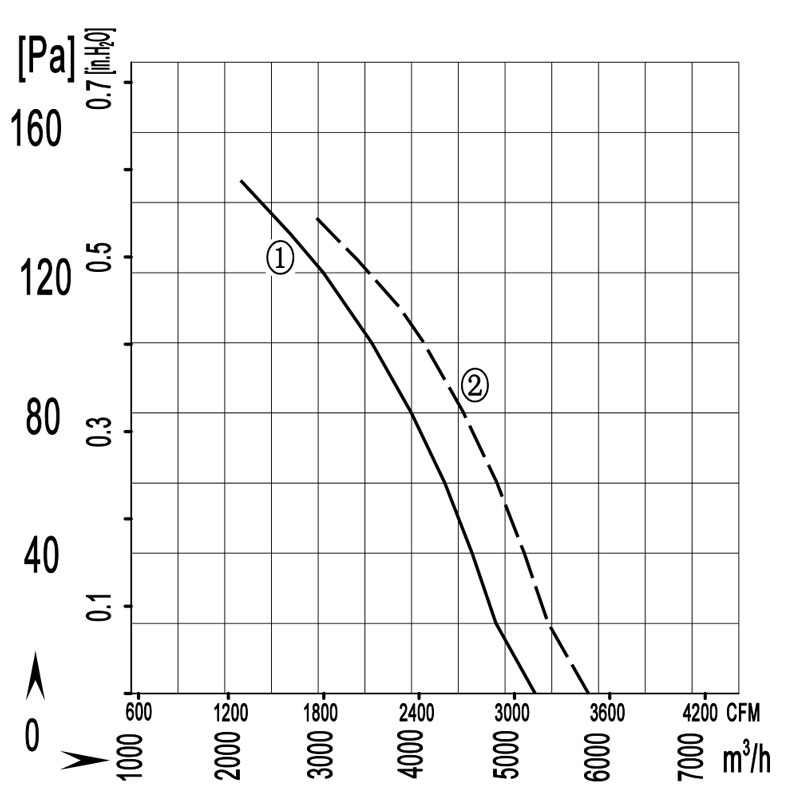

420-5R-quxian
