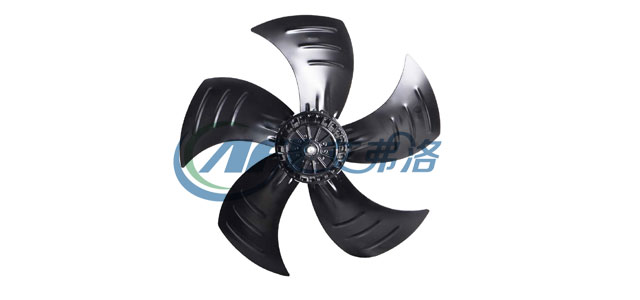

A500-5 External Rotor Motor Axial Fan

Inquiry Form

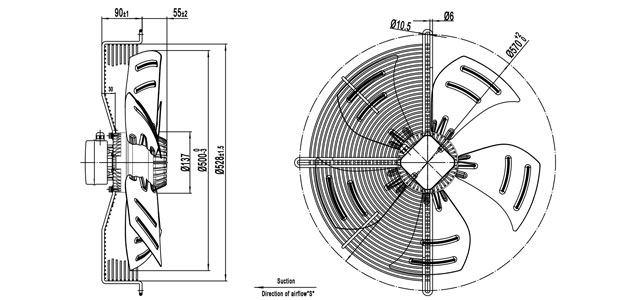

500-5-datu 500-5-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E500S-5DM-AR00 220/230 50 1.90 400 1320 10 6500 /3835 69 -30/+60 CCC,CE,RoHS
60 2.30 500 1450 6800 /4000 70
A4D500S-5DM-AR00 380/400 50 0.90 400 1350 / 6500 /3835 69 -30/+60 CCC,CE,RoHS
60 1.00 500 1500 6800 /4000 70
A6E500S-5DM-AR00 220/230 50 1.10 200 900 4 4320 /2541 65 -30/+60 CCC,CE,RoHS
60 1.35 250 1020 4800 /2823 66
A6D500S-5DM-AR00 380/400 50 0.60 200 900 / 4320 /2541 65 -30/+60 CCC.CE.RoHS
60 0.65 250 1100 4800 /2832 66

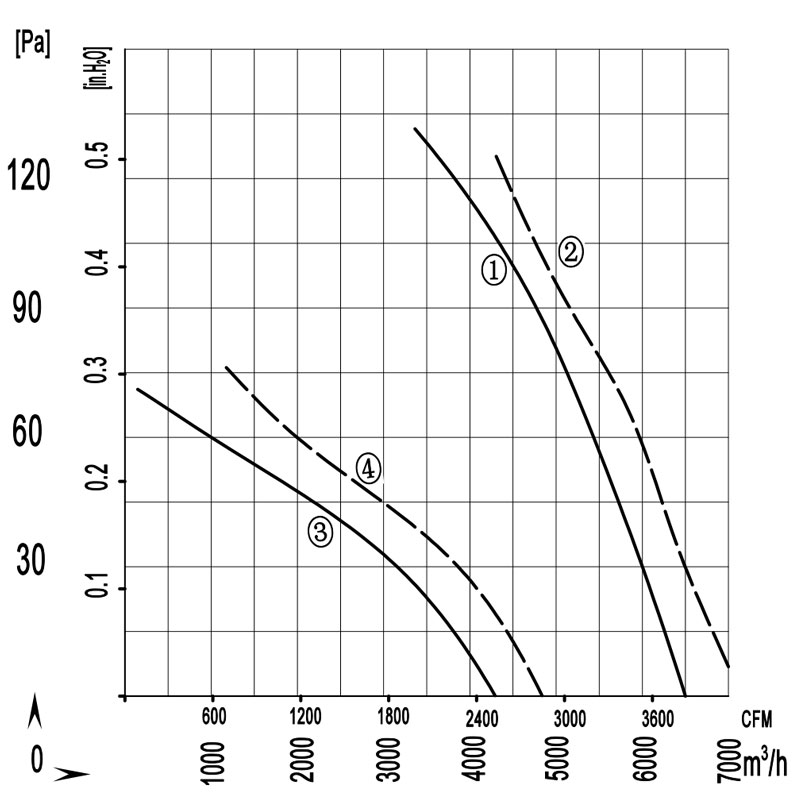

500-5-quxian
