A500-5T External Rotor Motor Axial Fan

Inquiry Form

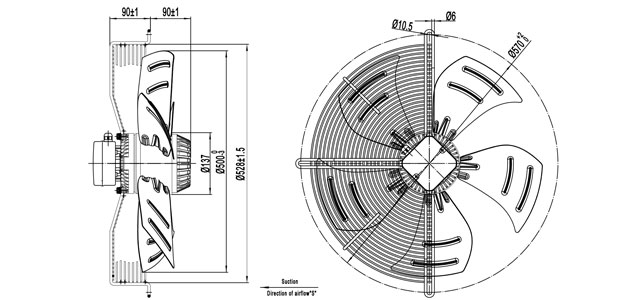

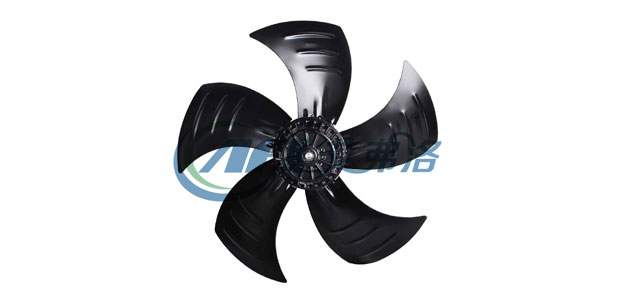

500-5T-datu500-5T-erwei



material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E500S-5DM-AT00 220/230 50 3.80 800 1320 16 9000 / 5300 80 -30/+60 CCC,CE,RoHS
A4D500S-5DM-ST00 380/400 50 1.50 750 1350 / 9000 / 5300 80 -30/+60 CCC,CE,RoHS
50 0.90 500 1000 7000 / 4117 70

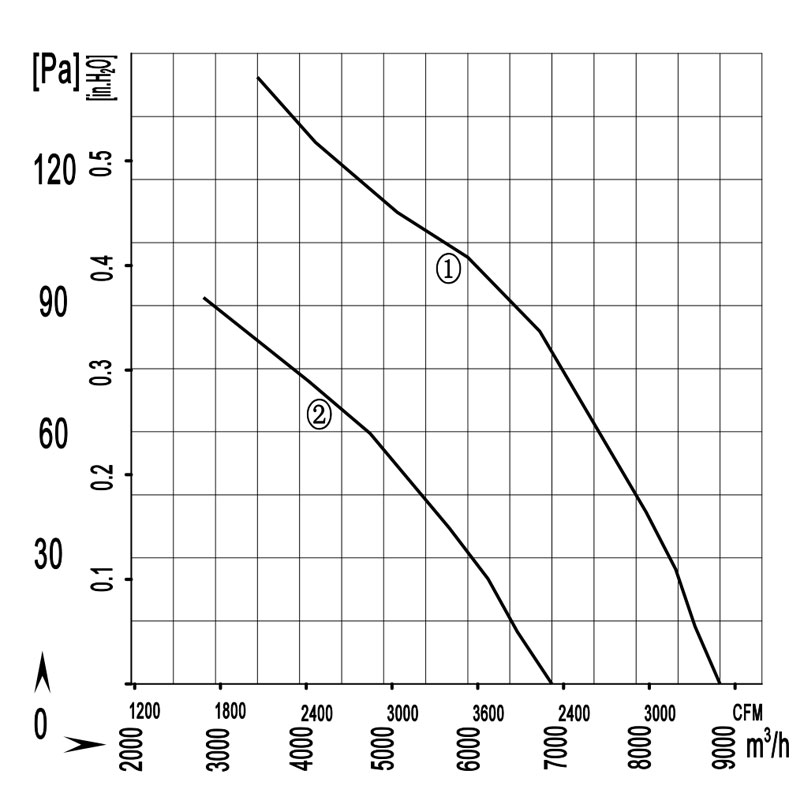

500-5T-quxian
