A550-5 External Rotor Motor Axial Fan

Inquiry Form

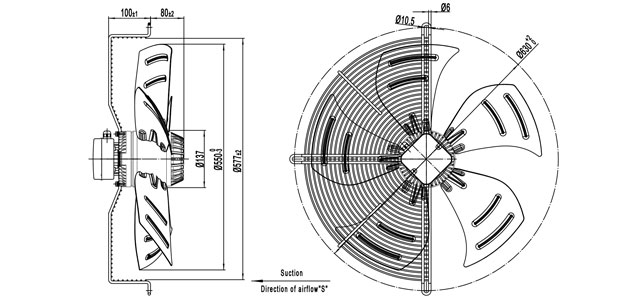

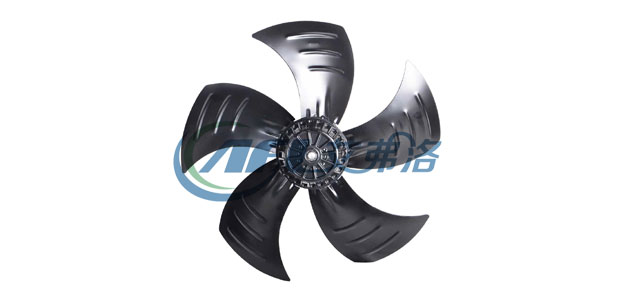

550-5-datu 550-5-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E550S-5DM-AS00 220/230 50 2.50 550 1320 12 7800 / 4588 73 -30/ +60 CCC,CE,RoHS
60 3.30 725 1450 8500 I 5000 74
A4D550S-5DM-AS00 380/400 50 1.10 550 1330 l 7800 / 4588 73 -30/+60 CCC,CE,RoHS
60 1.40 725 1540 8500 l 5000 74
A6E550S-5DM-AS00 220/230 50 1.50 320 910 10 6500 / 3823 62 -30/+60 CCC,CE,RoHS
60 2.15 465 1060 7000 / 4117 66
A6D550S-5DM-AS00 380/400 50 0.95 320 910 l 6500 l 3823 62 -30/+60 CCC,CE,RoHS
60 1.00 440 1090 7000 / 4117 66

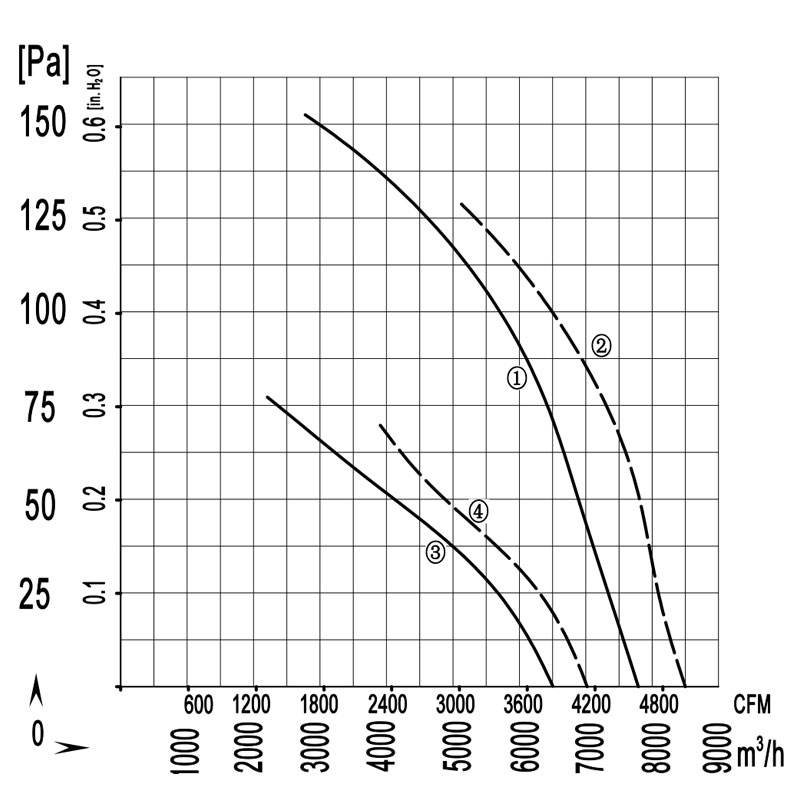

550-5-quxian
