A600-5 External Rotor Motor Axial Fan

Inquiry Form

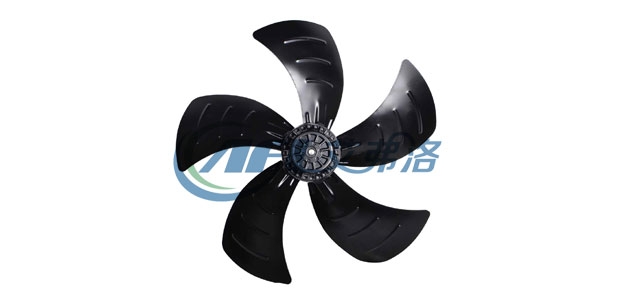

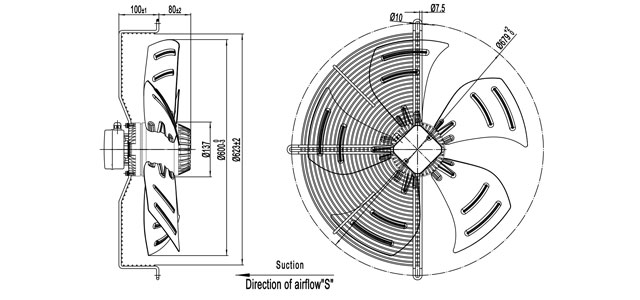

600-5-datu 600-5-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4D600S-5DM-AT00 380/400 50 1.50 800 1350 / 10200 / 6000 75 -30/+60 CCC,CE,RoHS
A6E600S-5DM-AT00 220/230 50 2.40 500 910 12 9500 /5605 67 -30/+60 CCC.CE.RoHS
60 2.90 640 1080 9900 / 5823 69
A6D600S-5DM-AT00 380/400 50 1.50 500 920 9500 /5605 67 -30/+60 CCC,CE,RoHS
60 1.50 650 1070 / 9900 / 5823 69

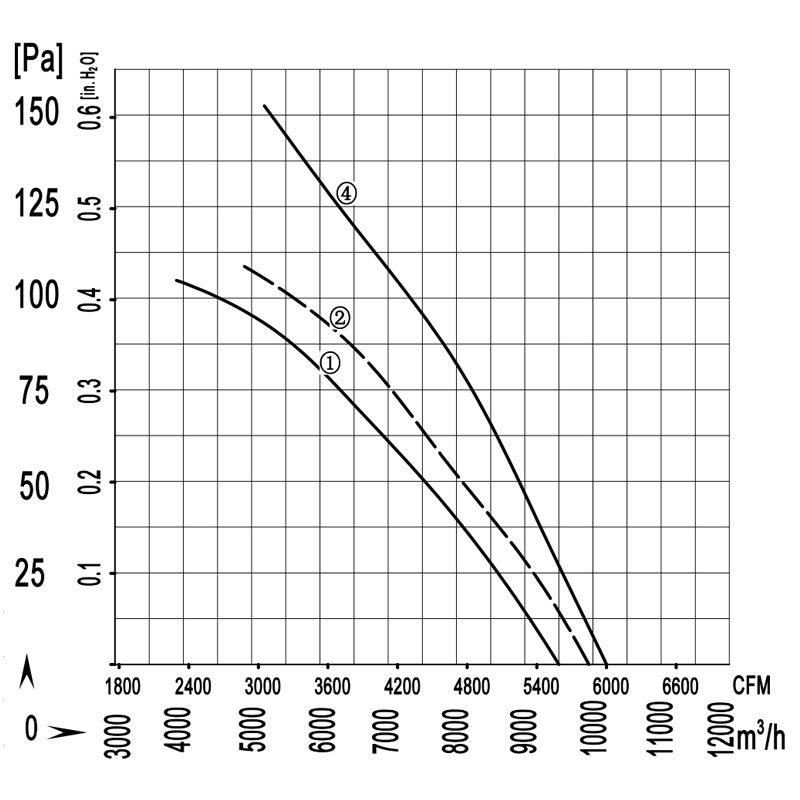

600-5-quxian
