B180-49 Backward Centrifugal Fan

Inquiry Form

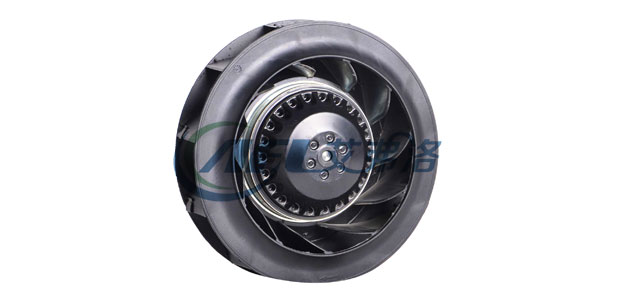

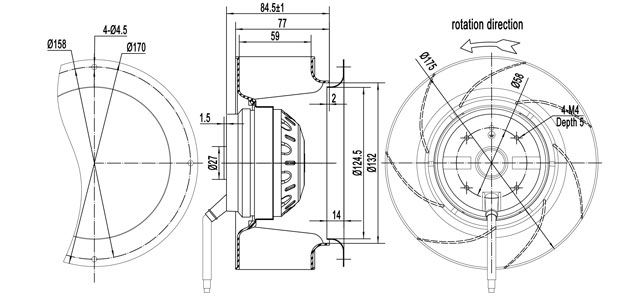

180-49datu 180.49-erwei

Impeller material: Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(°C) #
B2E180-049A-AA00 220/230 50 0.24 52 2550 1.5 430/ 253 63 -30/+60 CCC,CE,RoHS
220/230 60 0.32 66 2850 1.5 480 /282 66 -30/+60 CCC,CE,RoHS

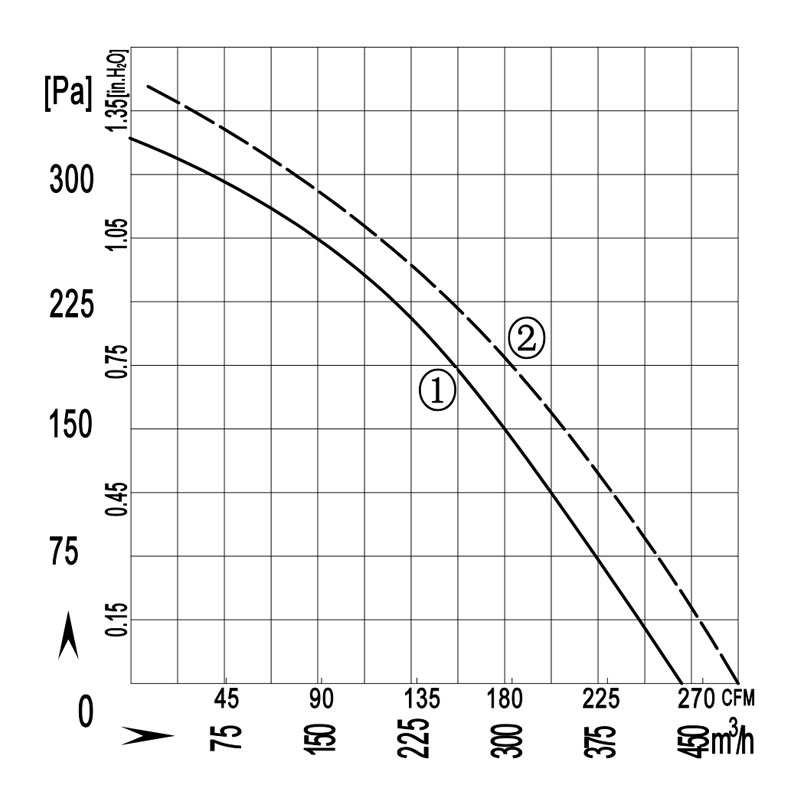

180-49-quxian
