B225-89 Backward Centrifugal Fan

Inquiry Form

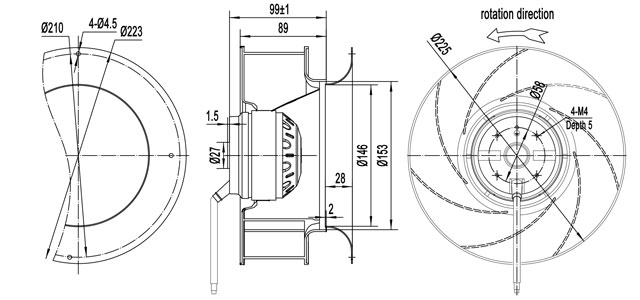

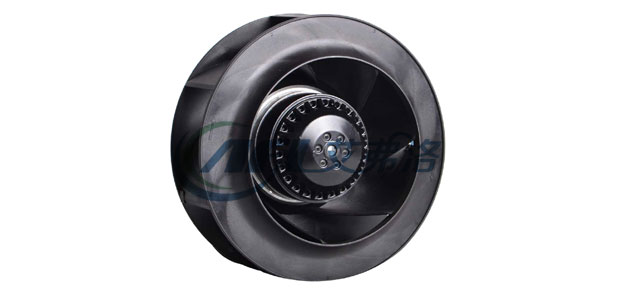

225-89-datu 225-89-erwei

Impeller material: Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.



Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(°C) #
B2E225-089A-AE00 220/230 50 0.60 135 2600 4 1100/647 70 -30/+60 CCC,CE,RoHS
220/230 60 0.90 180 2900 4 1250/735 72 -30/+60 CCC,CE,RoHS
B2D225-089A-AEC0 380/400 50 0.23 135 2600 / 1100/647 70 -30/+60 CCC,CE,RoHS
380/400 60 0.28 180 2900 / 1250/735 72 -30/+60 CCC,CE,RoHS

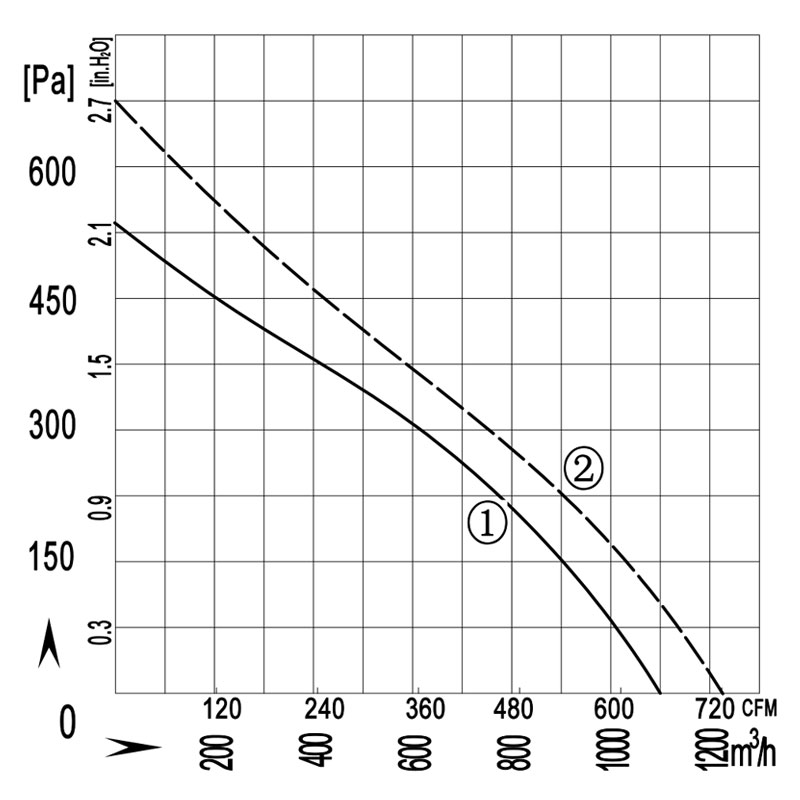

225-89quxian
