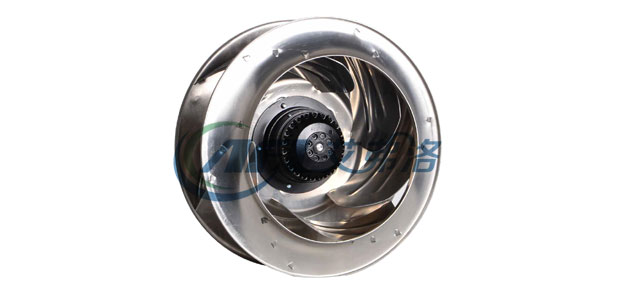

B355-145 Backward Centrifugal Fan

Inquiry Form

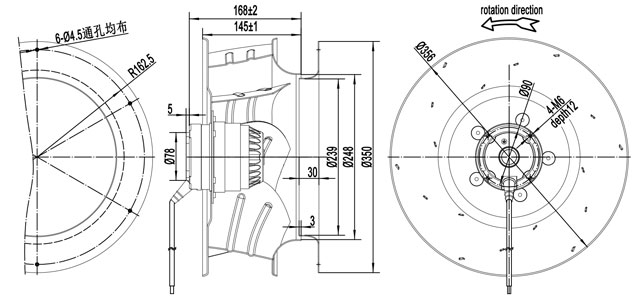

355-145-datu 355-145-erwei

material:Sheet aluminium

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B4E355-145A-AM00 220/230 50 0.75 165 1400 6 2450/1441 63 -30/+60 CCC,CE,RoHS
220/230 60 1.2 245 1460 6 2580/1517 65 -30/+60
B6E355-145A-AM00 220/230 50 0.46 100 930 4 1220/717 60 -30/+60 CCC,CE,RoHS
220/230 60 0.50 130 1080 4 1320/776 61 -30/+60
B4D355-145A-AM00 380/400 50 0.46 170 1400 / 2450/1441 63 -30/+60 CCC,CE,RoHS
380/400 60 0.48 250 1500 / 2580/1517 65 -30/+60

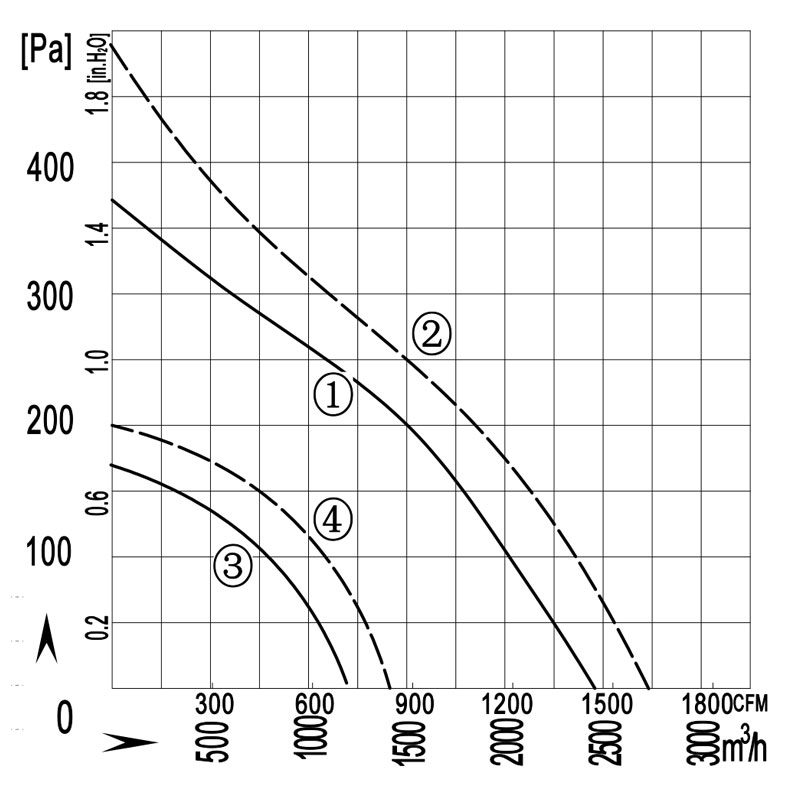

355-145-quxian
