B560-243 Backward Centrifugal Fan

Inquiry Form

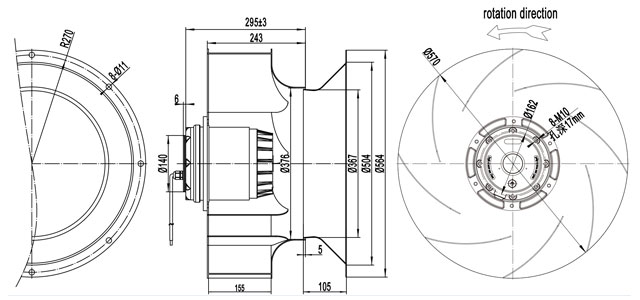

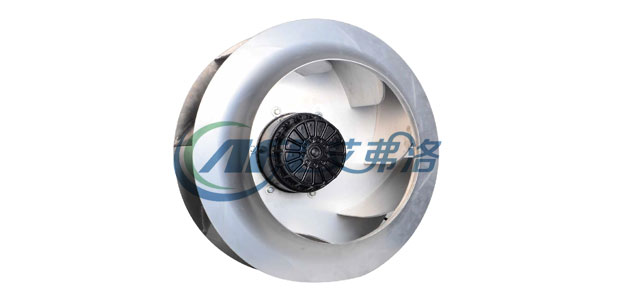

560-243-datu 560-243-erwei

material:Sheet aluminium

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B4D560-243A-AX00 380/400 50 4.5 2500 1340 / 12000/7059 85 -30/+60 CCC,CE,RoHS
B6D560-243A-AW00 380/400 50 1.8 900 910 / 9000/5294 73 -30/+60

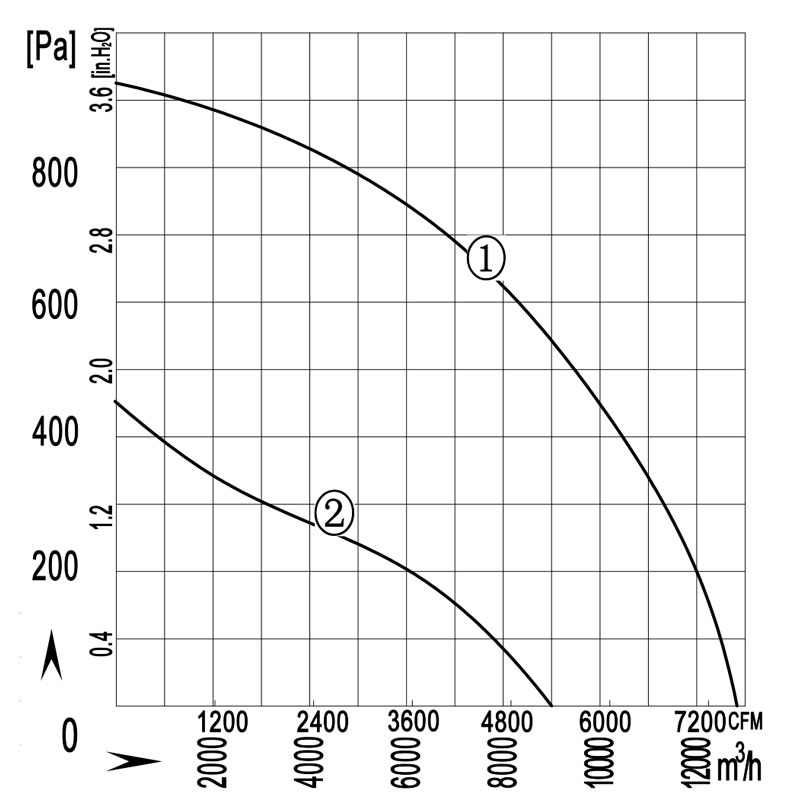

560-243-quxian
