B630-293 Backward Centrifugal Fan

Inquiry Form

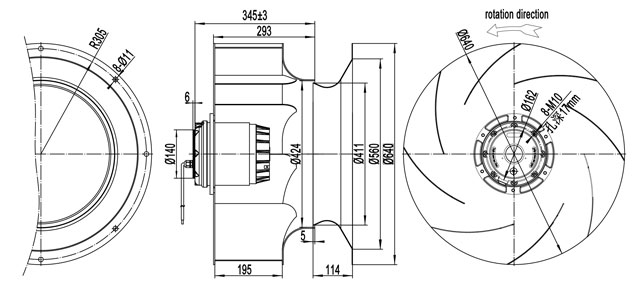

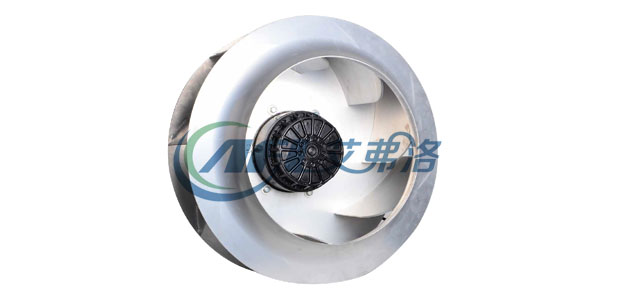

630-293-datu 630-293-erwei

material:Sheet aluminium

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B6D630-293A-AX00 380/400 50 3.8 1500 900 / 12000/7059 80 -30/+60 CCC ,CE,RoHS
B8D630-293A-AW00 380/400 50 1.7 700 700 / 9000/5294 72 -30/+60

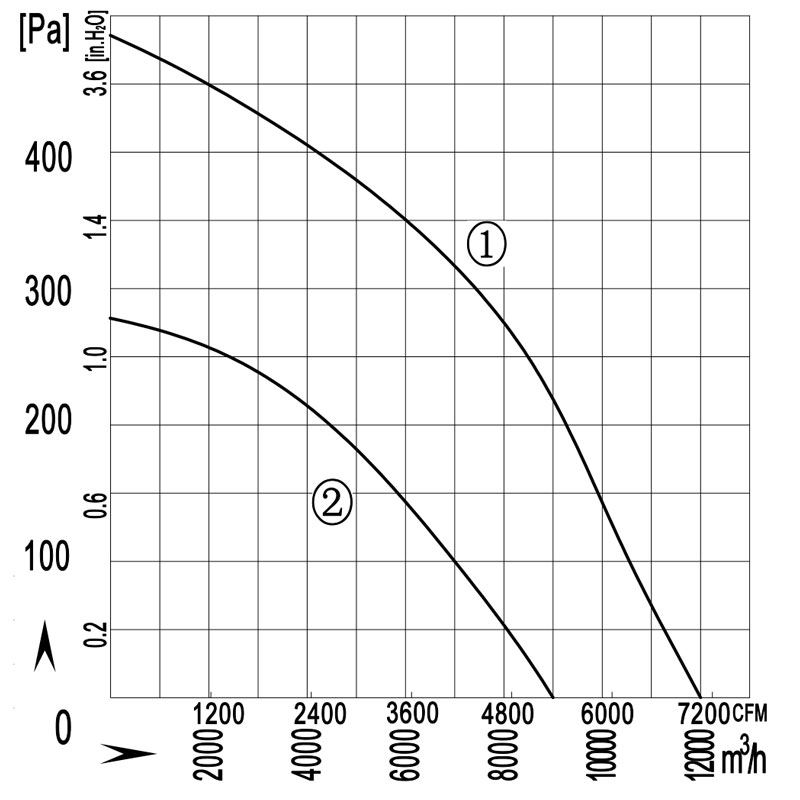

630-293-quxian
