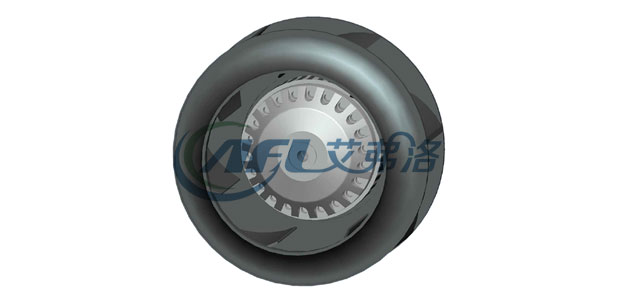

B133-60 Backward Centrifugal Fan

Inquiry Form

123 2weitu

Impeller material: Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

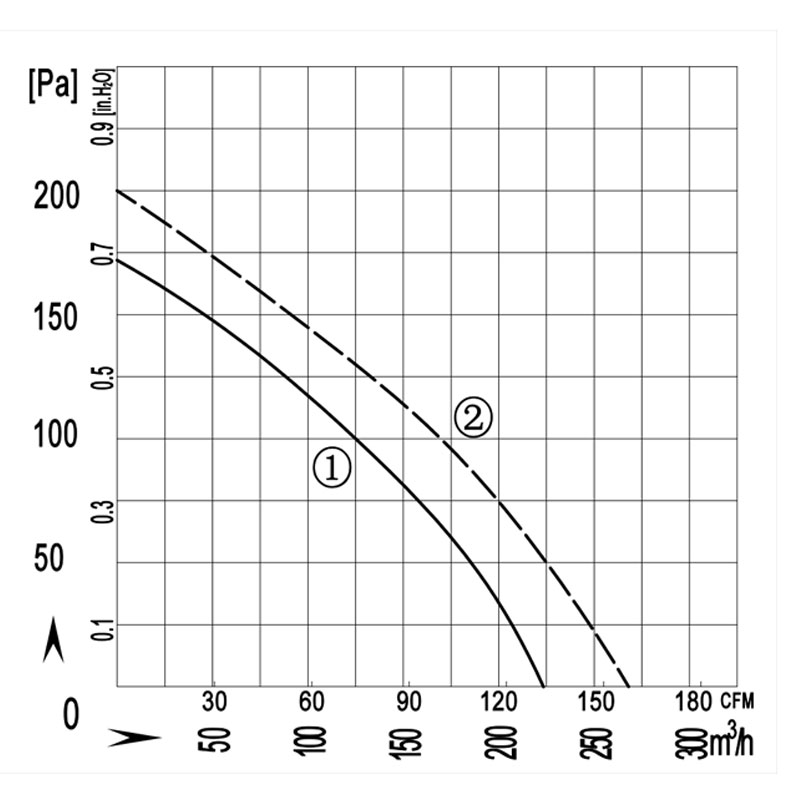

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(°C) #
B2E133-060A-AY00 220/230 50 0.14 30 2700 1 220/130 51 -30/+60 CCC,CE,RoHS
220/230 60 0.14 33 3250 1 270/160 57 -30/+60 CCC ,CE,RoHS
