DC Single Inlet Forward Centrifugal Fans Φ160

Inquiry Form

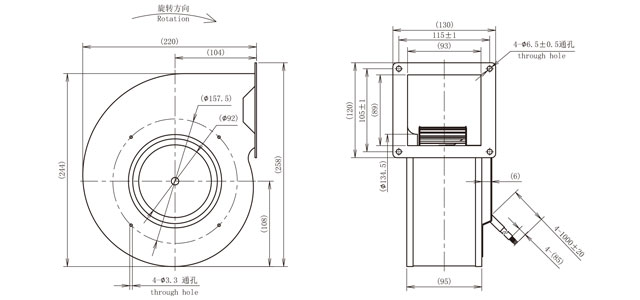

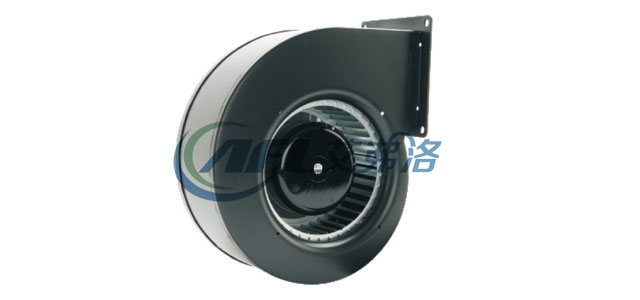

DC160A-datu DC160A-erwei

Meterial: Galvanised sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications

Type

Curve

 Nominal voltage

Speed

Power input

Current
draw

Sound pressure level

Perm. amb.
tenip.



[VAC]

[rpm]

[W]

[A]

[dB]

[℃]

F3P160-DC092-001

24

1750

100

4.4

67

-25〜+60

F3P160-DC092-000

48

1750

100

2.2

67

-25〜+60

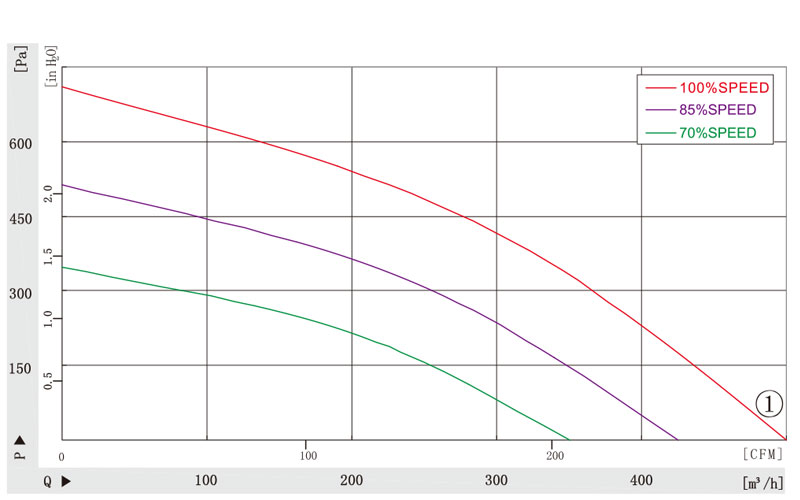

Curves

SIGNAL

COLOR

SPEC

Vs

RED

DC48V

Vsp

YELLOW

0-10VDC/PWM

GND

BLUE

GND

TACH

WHITE

3 Pulse/R

DC160A-quxin
