B3P355-EC102-001 EC Backward Centrifugal FansΦ355

Inquiry Form

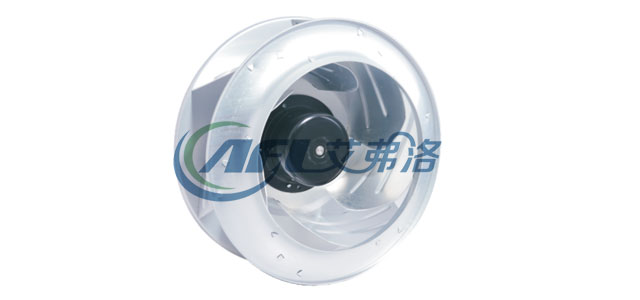

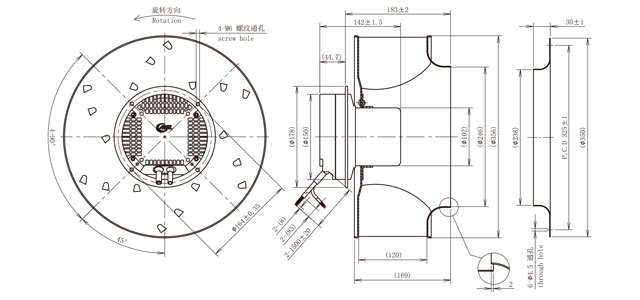

355ECA-datu 355ECA-erwei

Meterial: Sheet aluminium
Type of protection; IP44
Approvals: CCC CE
Insulation class: B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

Specifications
Type Curve Nominal voltage Frequency Speed Power input Current draw Sound pressure level Perm. Amb.
temp.
B3P355-EC102-001 [VAC] [Hz] [rpm] [w] [A] [dB] [°C]
220 50/60 1700 310 1.4 73 -25〜十60

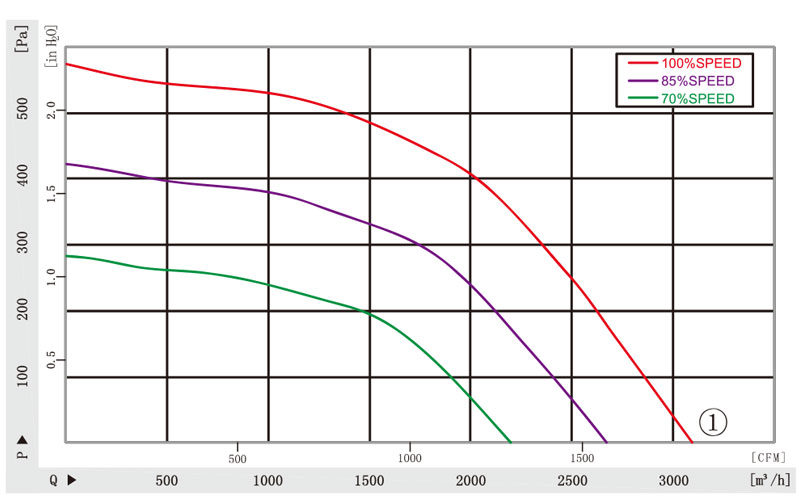

355ECA-quxian
