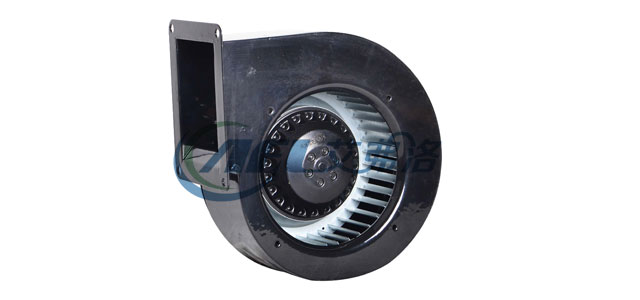

F120-60W Forward Centrifugal Fan
Inquiry Form
material:Galvanised sheet steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.
Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

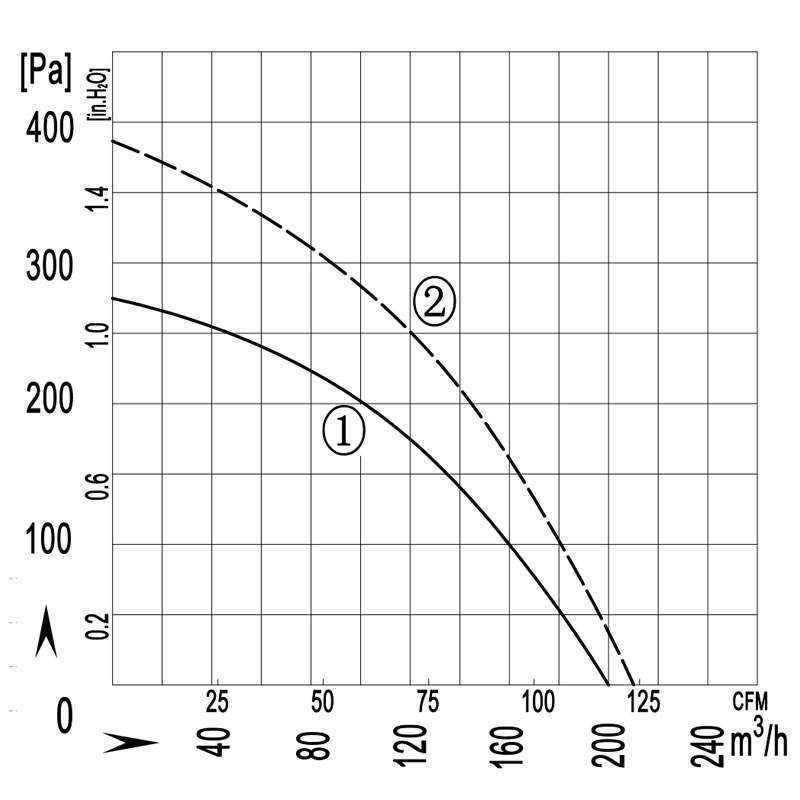

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| F2E120-060W-AA00 | 220/230 | 50 | 0.27 | 58 | 2400 | 1.5 | 200/120 | 51 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.33 | 73 | 2500 | 1.5 | 210/l24 | 53 | -30/+60 | ② | CCC,CE，RoHS |
