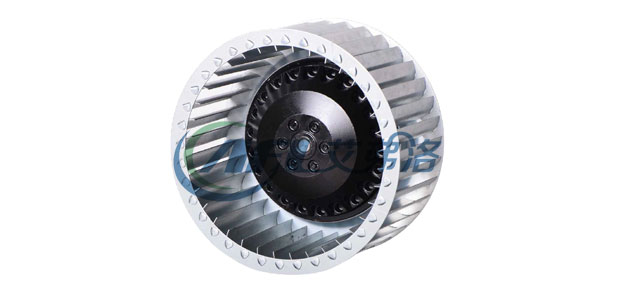

F133-73 Forward Centrifugal Fan

Inquiry Form

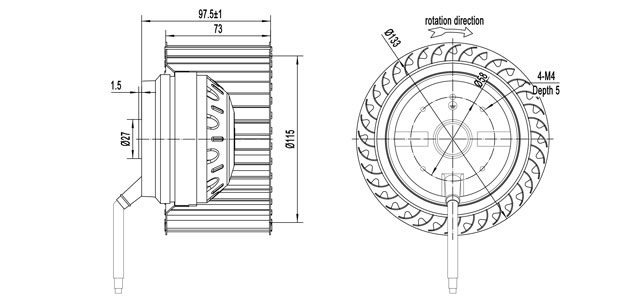

133-73X-datu 133-73X-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E133-073A-AA01 220/230 50 0.32 70 2300 2 290/ 170 61 -30/+60 CCC.CE.RoHS
220/230 60 0.40 85 2350 2 270/ 160 63 -30/+60 CCCCE,RoHS

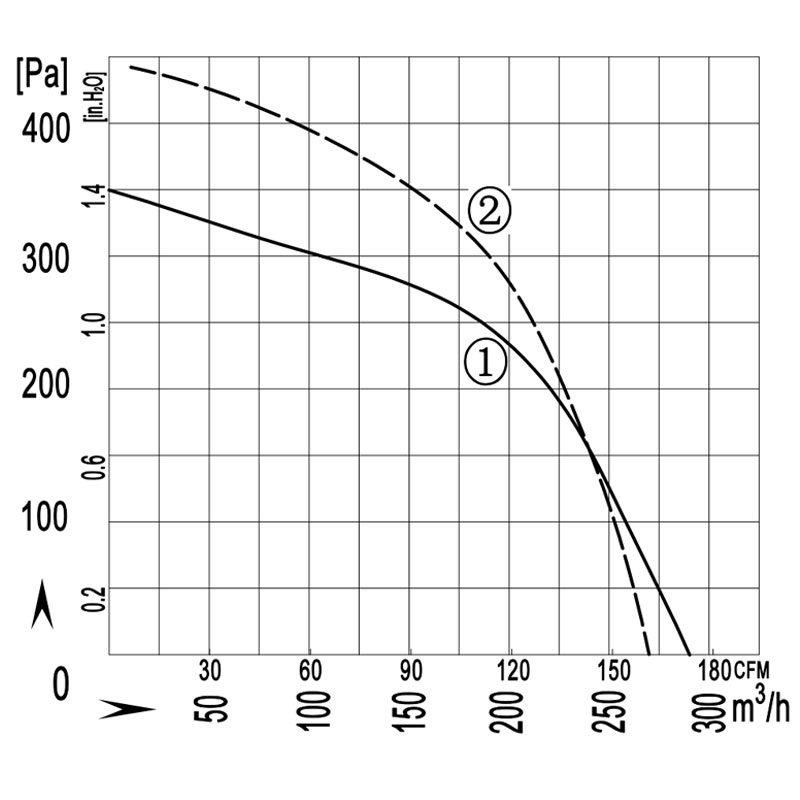

133-73X-quxian
