Double Inlet Forward Curved Centrifugal Fans
Inquiry Form
material:Galvanised sheet steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

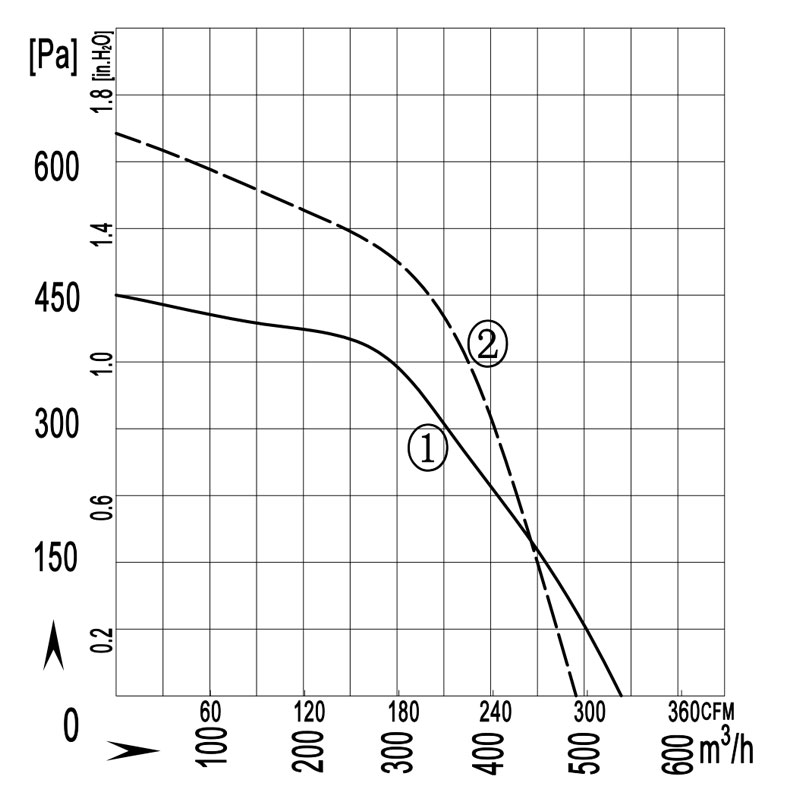

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| F2E150-070A-AE01 | 220/230 | 50 | 0.65 | 135 | 2600 | 4 | 535/315 | 67 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.82 | 180 | 2850 | 4 | 485 /285 | 71 | -30/+60 | ② | CCC,CE,RoHS |
