Centrifugal fans with forward curved impeller

Inquiry Form

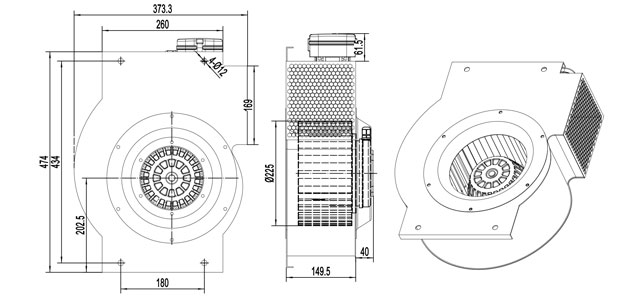

225-115W-datu 225-115W-erwei

material:Galvanised sheet steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F4D225-115W-AS00 380/400 50 1.0 320 1450 / 1400/823 73 -30/+60 CCC,CE,RoHS

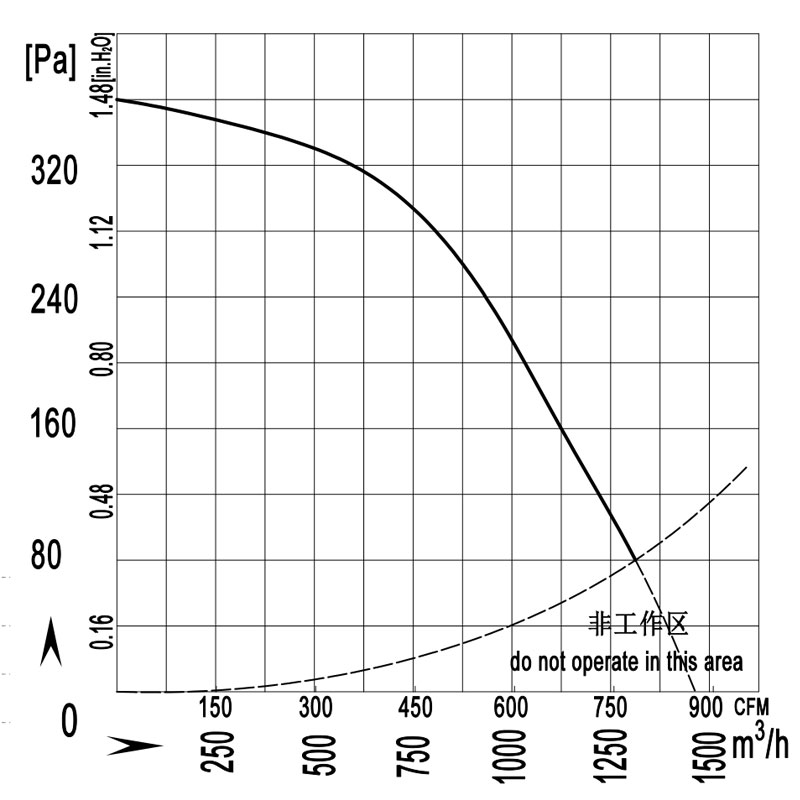

225-115W-quxian
