F315-150W Forward Centrifugal Fan

Inquiry Form

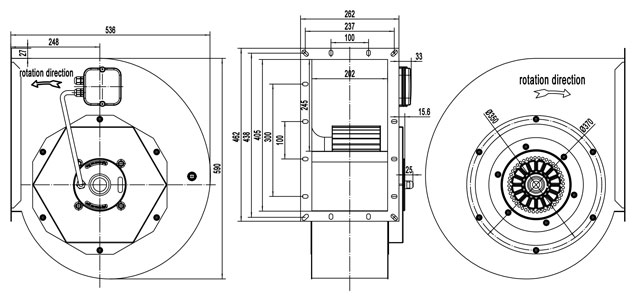

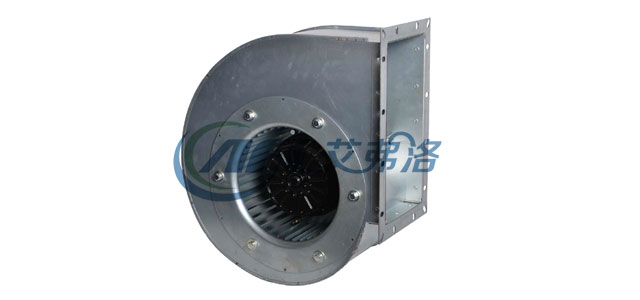

315-150W-datu 315-150W-erwei

material:Galvanised sheet steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F4D315-150W-AW00 380/400 50 3.7 2200 1350   5000/2941 85 -30/+60 CCC,CE,RoHS

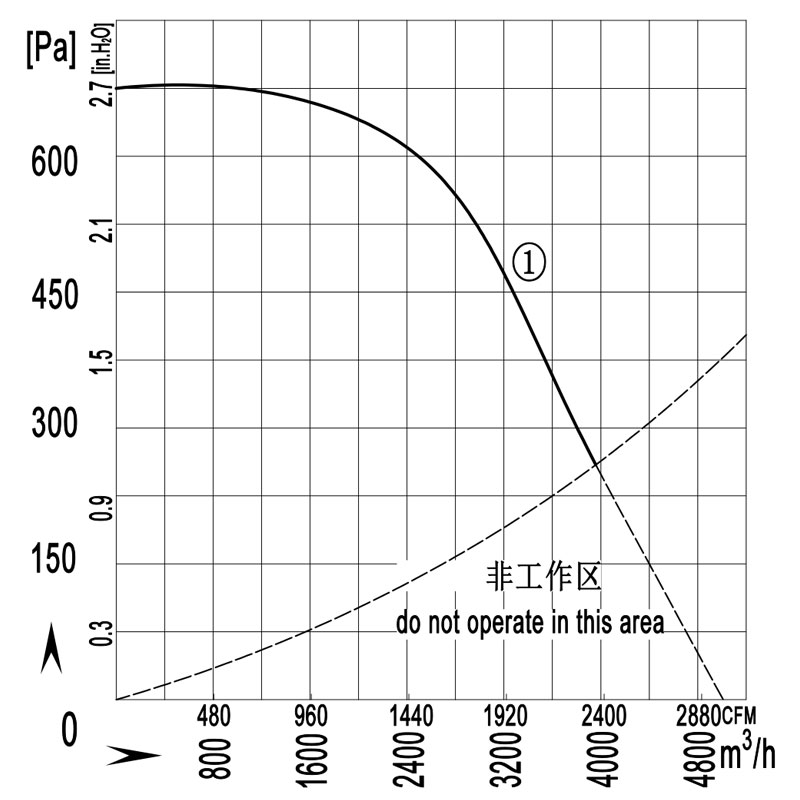

315-150W-quxian
