A450-5 External Rotor Motor Axial Fan

Inquiry Form

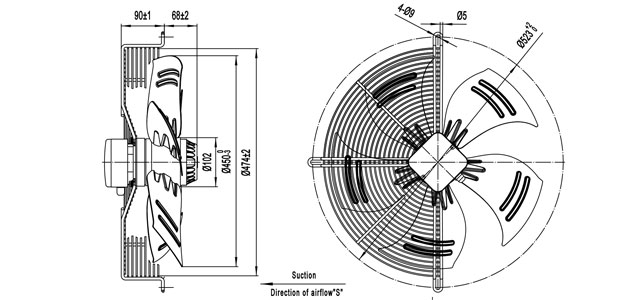

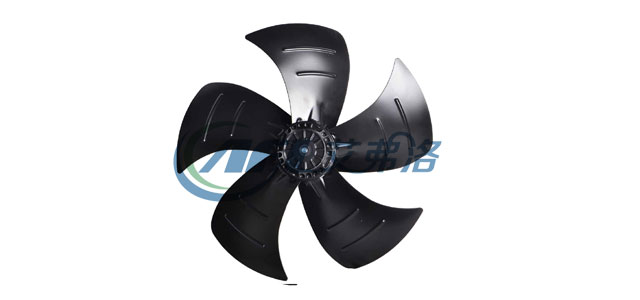

450-5-datu 450-5-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E450S-5DM-AN00 220/230 50 1.10 230 1350 7 4500/2650 62 -30 / +60 CCC,CE,RoHS
60 1.20 280 1600 4800/2825 64
A4D450S-5DM-AN00 380/400 50 0.50 230 1350 / 4500/2650 62 -30 / +60 CCC,CE,RoHS
60 0.60 280 1600 4800/2825 64
A6E450S-5DM-AN00 220/230 50 0.65 130 920 6 2900/1705 56 -30 / +60 CCC,CE,RoHS
60 0.75 170 1100 3400/2000 58
A6D450S-5DM-AN00 380/400 50 0.31 115 910 1 2900/1705 56 -30 / +60 CCC,CE,RoHS
60 0.34 140 1030 3400/2000 58

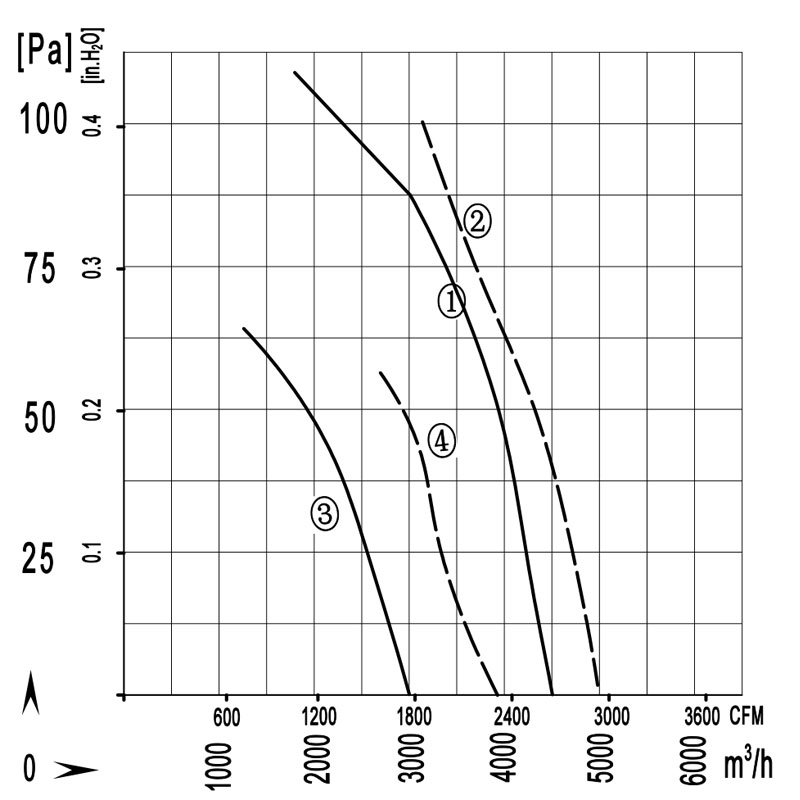

450-5-quxian
