B315-087 Backward Centrifugal Fan

Inquiry Form

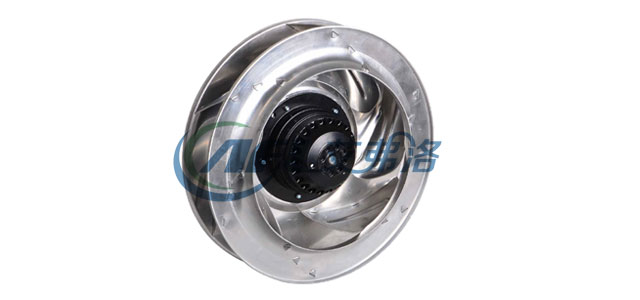

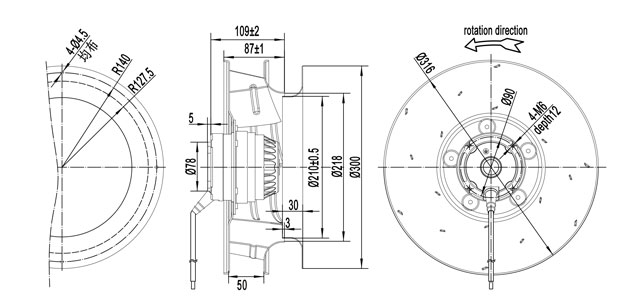

315-087-datu 315-087-erwei

Impeller material:Galvanised sheet steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B4E315-087A-AL00 220/230 50 0.50 95 1400 3 1350/794 56 -30/+60 CCC,CE,RoHS
220/230 60 0.60 115 1600 3 1500/882 58 -30/+60

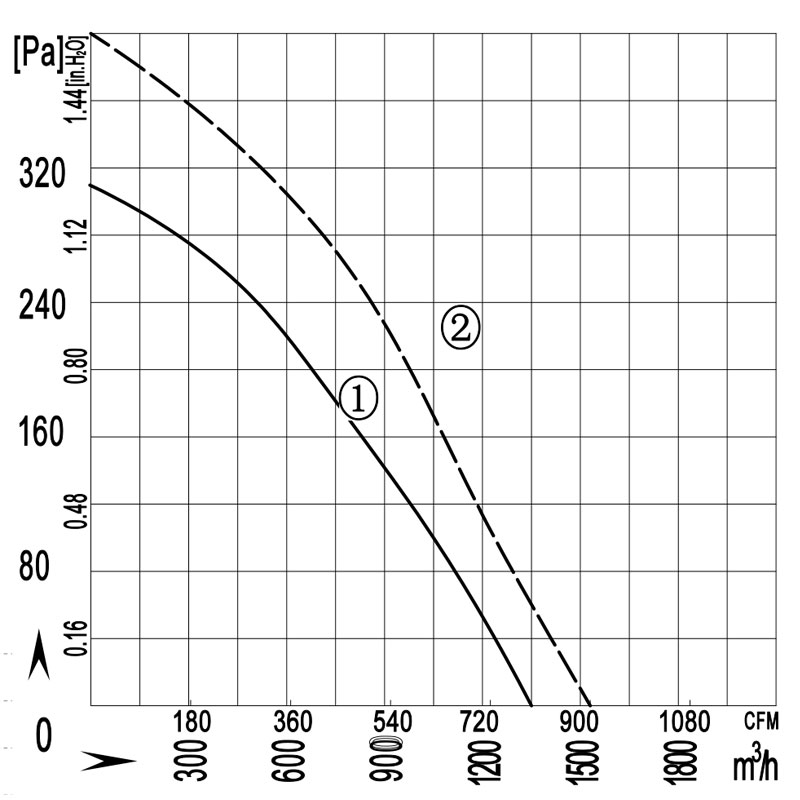

315-087-quxian
