F133-73W Forward Centrifugal Fan

Inquiry Form

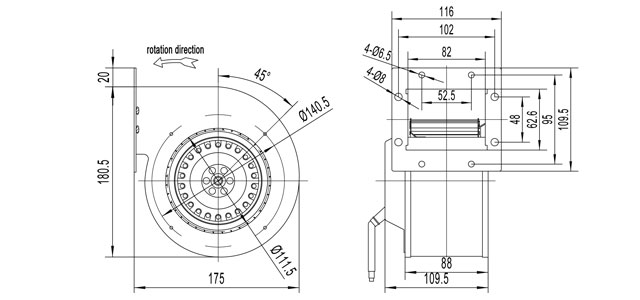

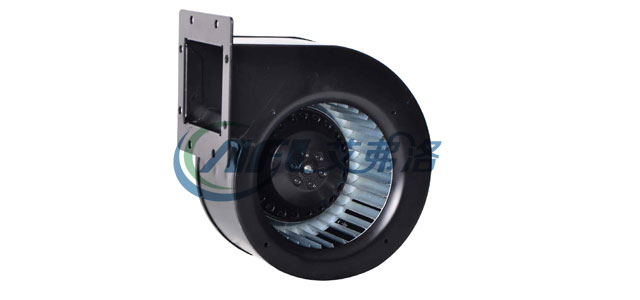

133-73W2-datu 133-73W2-erweit

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to larger system resistance and limited internal space.

Application
1.Coil Units;
2.Air Purification;
3.Ventilating Units;
4.Roof Fans.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E133-073W-AA01 220/230 50 0.37 83 1850 2 290/170 61 -30/+60 CCC,CE,RoHS
220/230 60 0.43 95 1750 2 270 /160 63 -30/+60 CCC,CE,RoHS

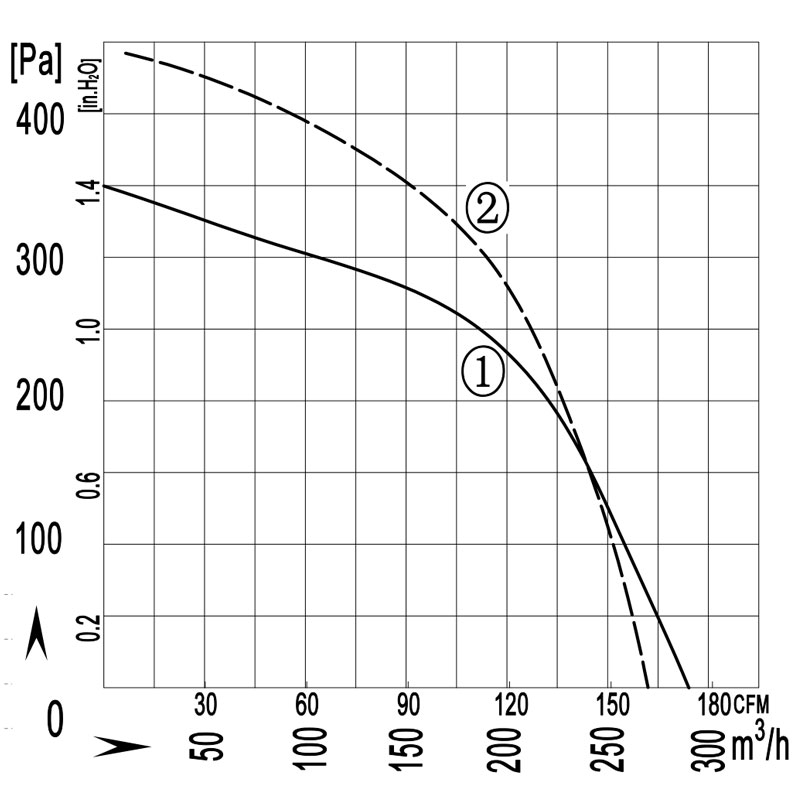

133-73W2-quxian
