F140-60A-TS Forward Centrifugal Fan

Inquiry Form

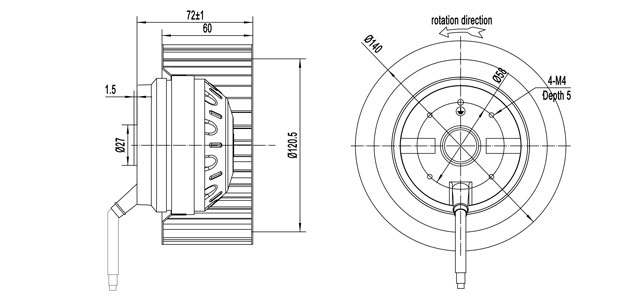

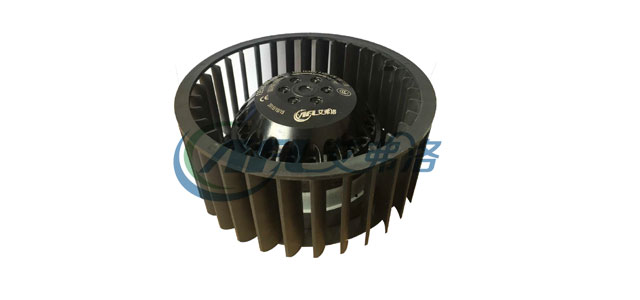

140-60A-TS-datu 140-60A-TS-erwei

material:Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
0.42 100 1600 330 /194 58 -30/+60 CCC,CE,_S
F2E140-060A-TAS0 220/230 50 0.30 65 1200 2 240 / 141 51 -30/+60 CCC,CE,RoHS
0.20 40 900 170/100 45 -30/+60 CCC,CE,RoHS

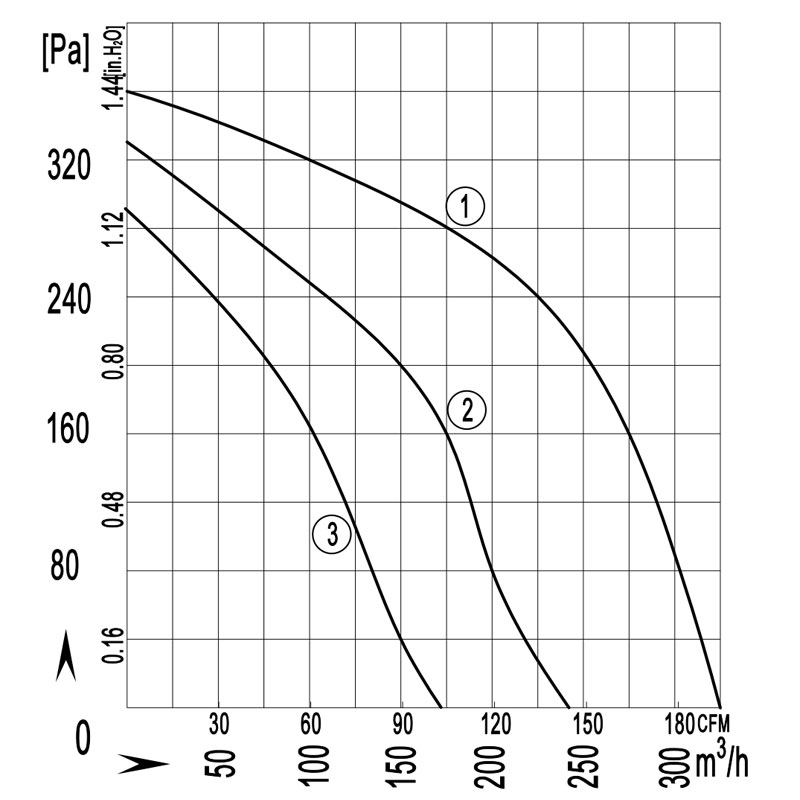

140-60A-TS-quxian
