F150-70 Forward Centrifugal Fan

Inquiry Form

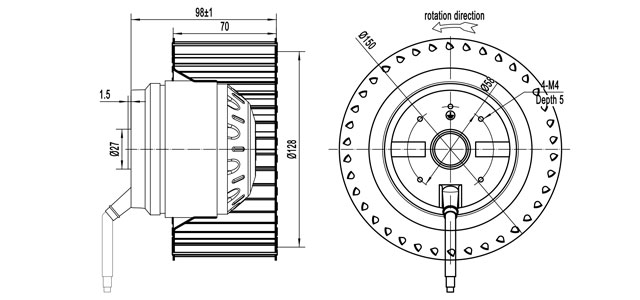

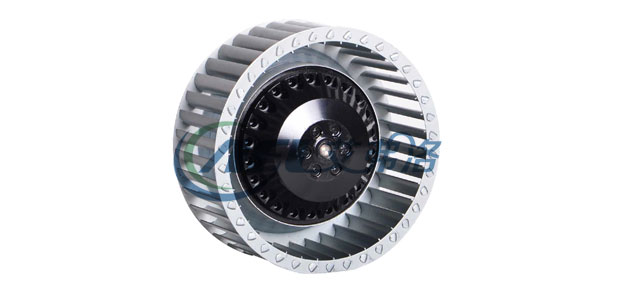

150-70-datu 150-70-erwei

material:Galvanised sheet steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
F2E150-070A-AE00 220/230 50 0.65 135 2600 4 535/315 67 -30/+60 CCC,CE,RoHS
220/230 60 0.82 180 2850 4 485 /285 71 -30/+60 CCC,CE,RoHS

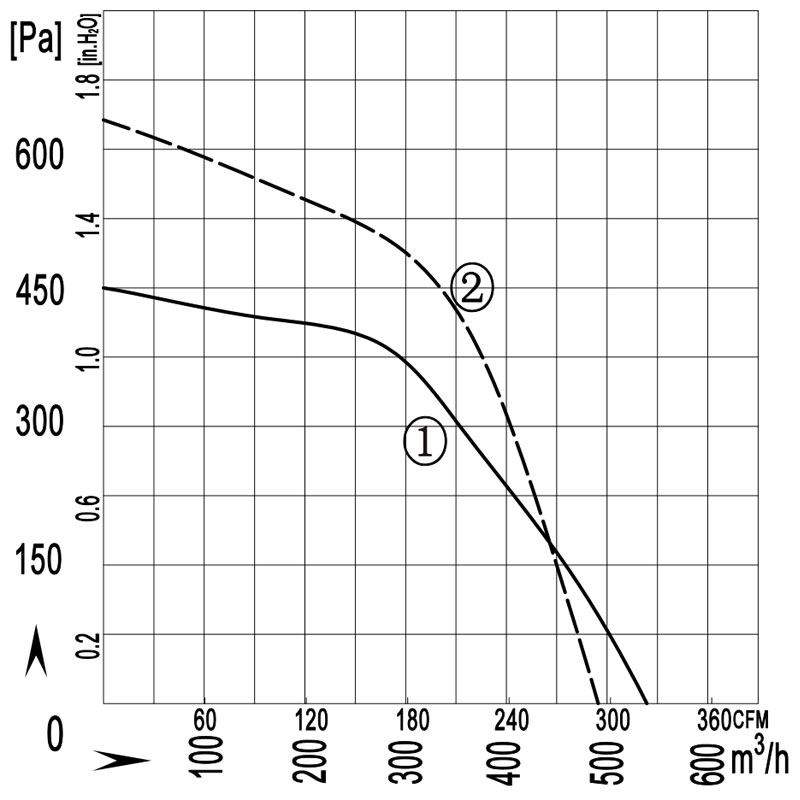

150-70-quxian
