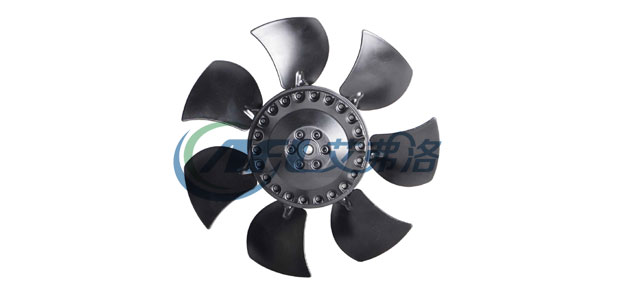

A185-7 refrigerator fan motor
Inquiry Form
material:Impeller. Steel Sheet
Protection Class: IP44
Approvals: CCC CE 0
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

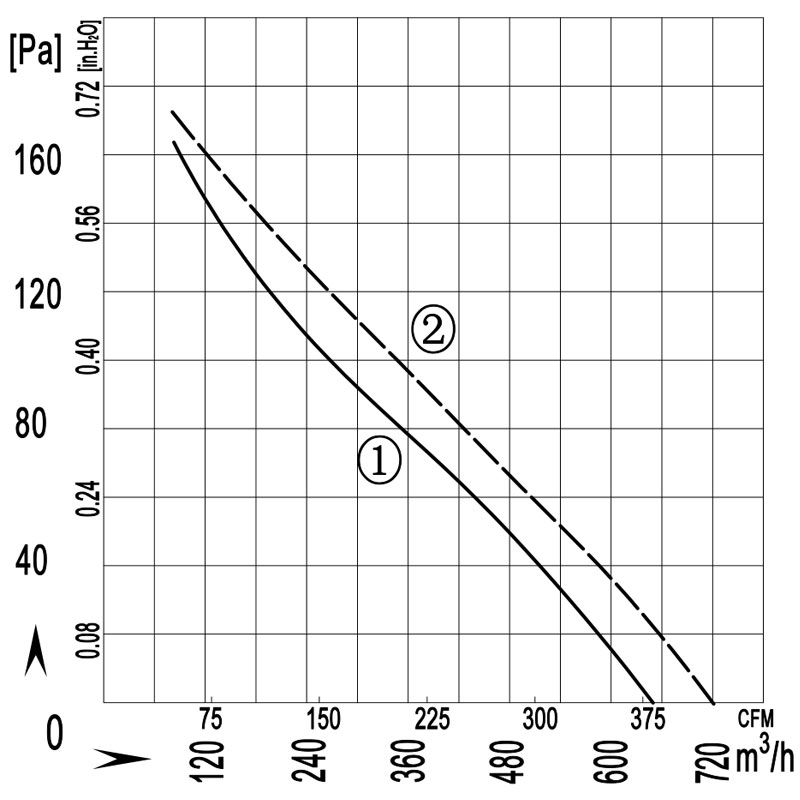

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A2E185S-7AN-M00 | 220/230 | 50 | 0.25 | 55 | 2400 | 1.5 | 650 1 382 | 51 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 0.28 | 75 | 2700 | 720 1 423 | 52 | ② | |||||
| A2D185S-7AN-AA00 | 380/400 | 50 | 0.15 | 55 | 2400 | / | 650 / 382 | 51 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 0.18 | 75 | 2700 | 720 / 423 | 52 | ② |
