A200-7 electrical fan motor

Inquiry Form

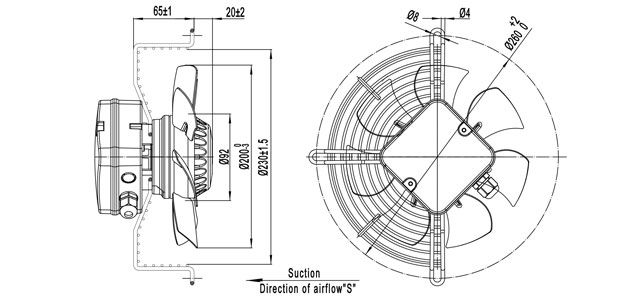

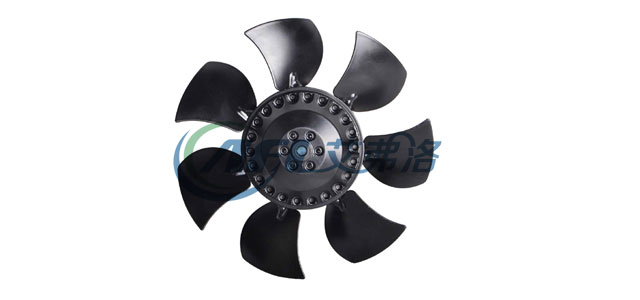

200-7-datu 200-7erwei

material:Cold rolled steel

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A2E200S-7DM-AA00 220/230 50 0.30 65 2300 2 880 /518 53 -30/+60 ① CCC,CE,RoHS
60 0.34 80 2600 980/ 576 55 ②
A2D200S-7DM-AA00 380/400 50 0.21 65 2300 / 880/ 518 53 -30/+60 ① CCC,CE,RoHS
60 0.24 80 2600 980/ 576 55 ②

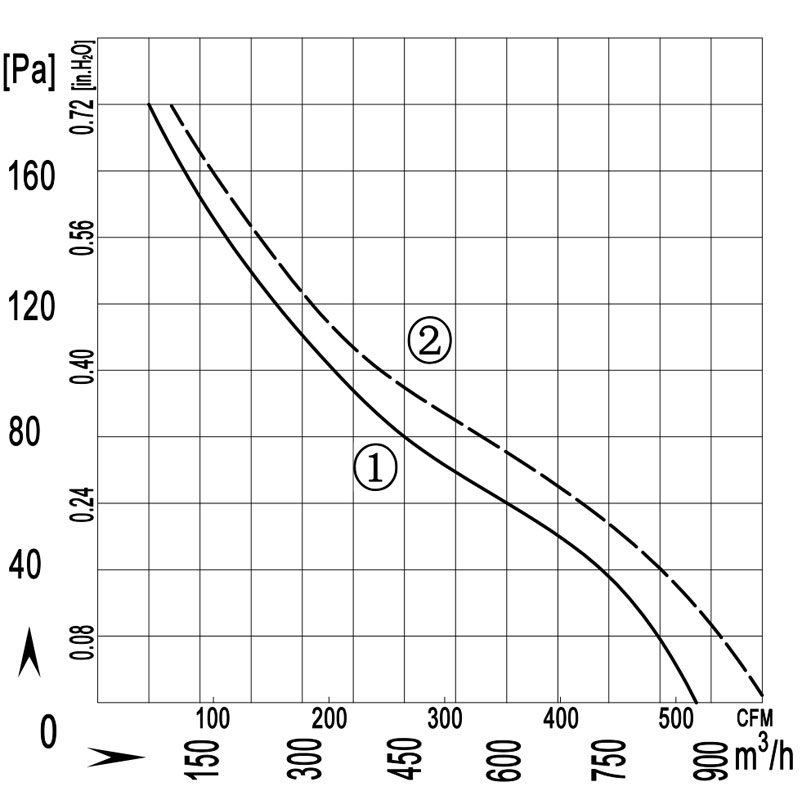

200-7-quxian
