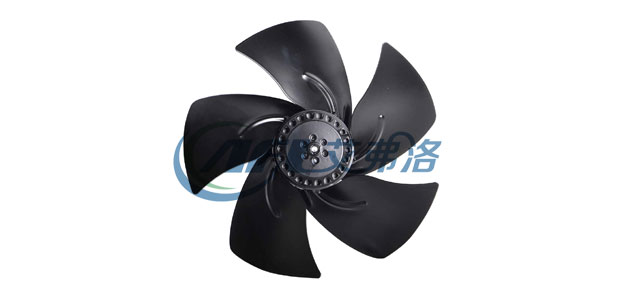

A300-5 External Rotor Motor Axial Fan
Inquiry Form
material:Cold rolled steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

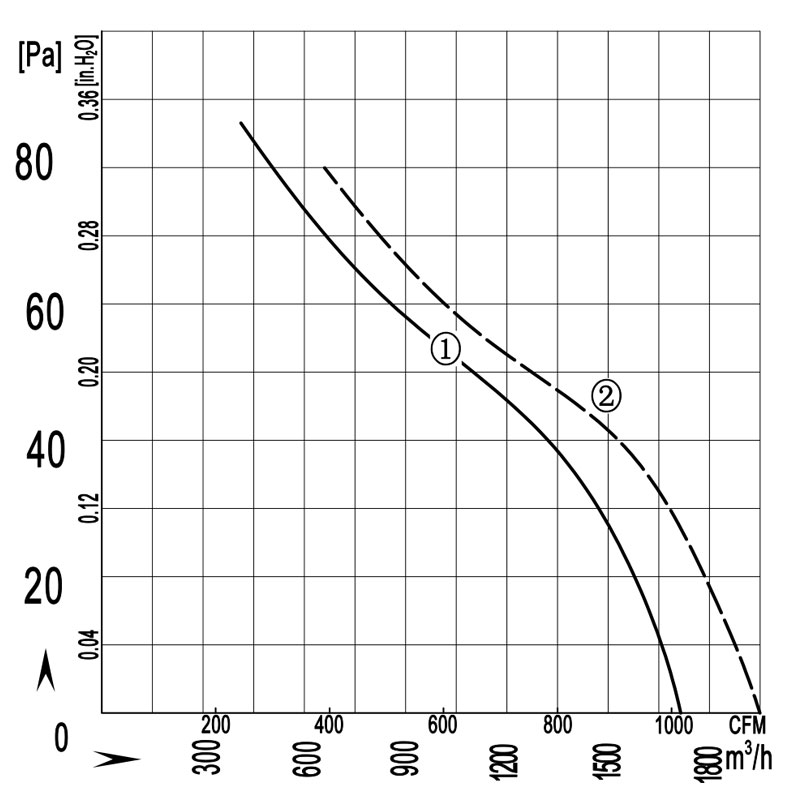

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A4E300S-5DM-AE00 | 220/230 | 50 | 0.42 | 90 | 1350 | 3 | 1750 / 1029 | 54 | -30/+60 | ① | CCC.CE.RoHS |
| 60 | 0.51 | 115 | 1600 | 2000 / 1176 | 55 | ② | |||||
| A4D300S-5DM-AE00 | 380/400 | 50 | 0.25 | 90 | 1380 | / | 1750 l 1029 | 54 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 0.26 | 120 | 1640 | 2000 / 1176 | 55 | ② |
