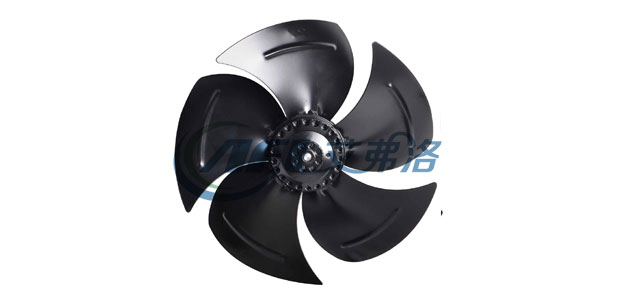

A350-5 External Rotor Motor Axial Fan

Inquiry Form

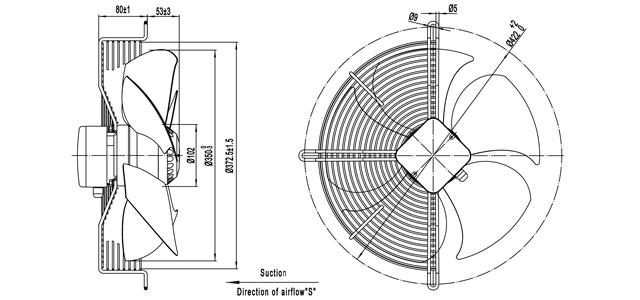

350-5-datu 350-5-erwei

material:Cold rolled steel

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
A4E350S-5DM-AL00 220/230 50 0.60 135 1380 3 2700 / 1588 58 -30/ +60 ① CCC.CE.RoHS
60 0.83 190 1550 3000 / 1765 60 ②
A4D350S-5DM-AL00 380/400 50 0.30 135 1360 / 2700 / 1588 58 -30/ +60 ① CCC,CE,RoHS
60 0.34 170 1500 3000/ 1765 60 ②
A6E350S-5DM-AL00 220/230 50 0.40 75 950 3 1560 /920 53 -30/ +60 ③ CCC,CE,RoHS
60 0.37 83 1100 1800 / 1060 54 ④
A6D350S-5DM-AL00 380/400 50 0.29 70 920 / 1560/ 920 53 -30/ +60 ③ CCC.CE.RoHS
60 0.20 80 1050 1800 / 1060 54 ④

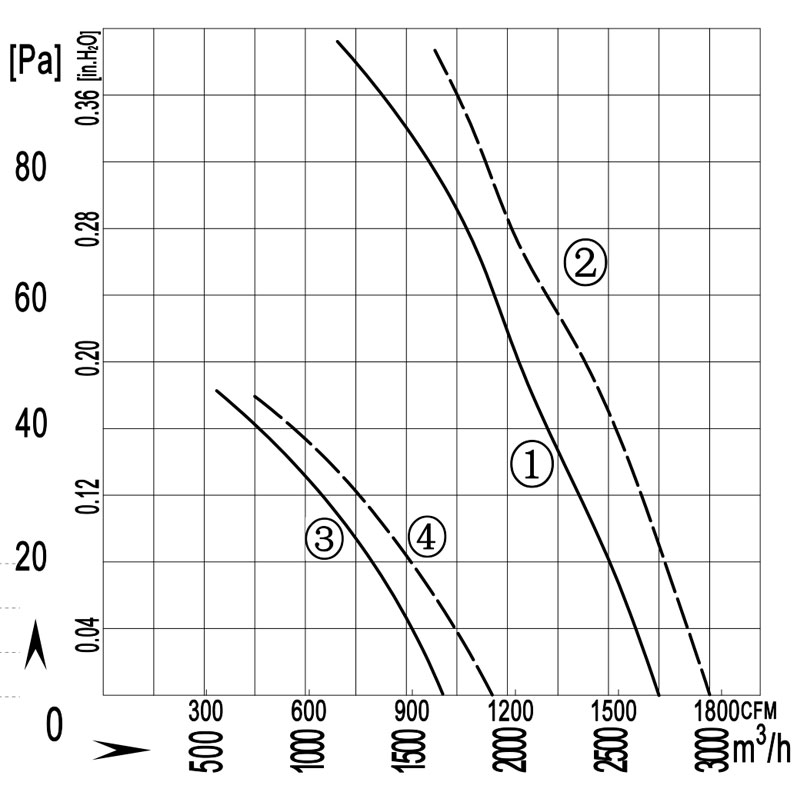

350-5-quxian
