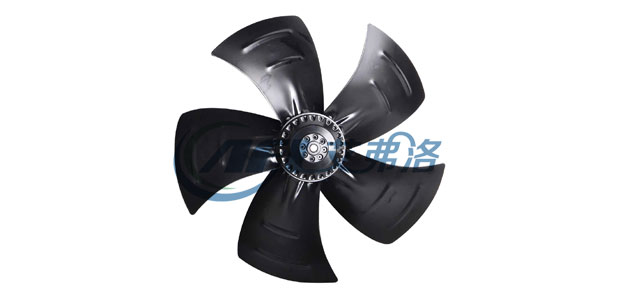

A400-5N External Rotor Motor Axial Fan
Inquiry Form
material:Cold rolled steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

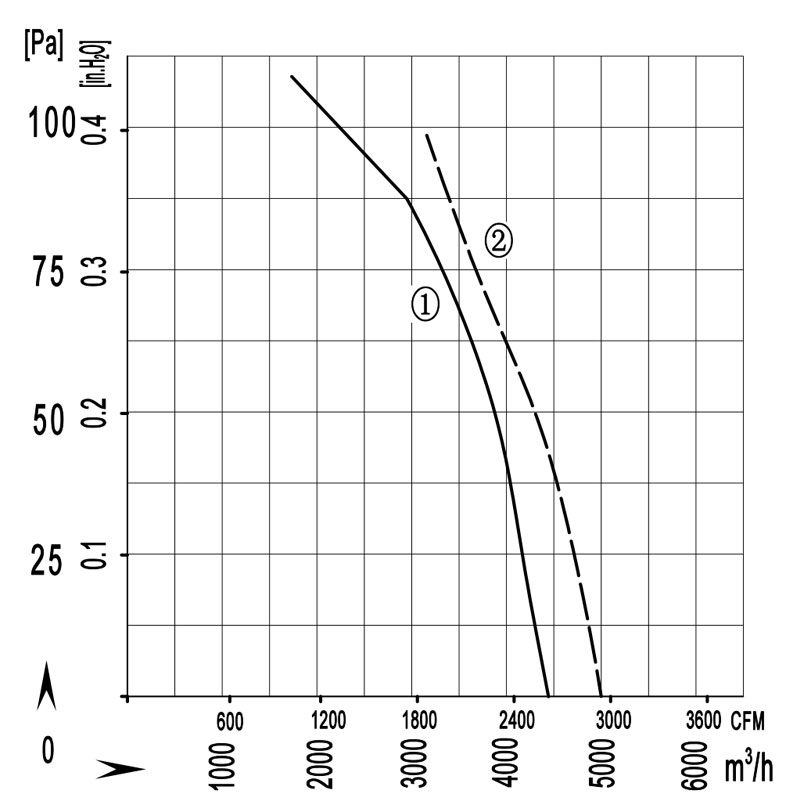

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A4E400S-5DM-AN00 | 220/230 | 50 | 1.10 | 230 | 1350 | 7 | 4400/2588 | 62 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 1.20 | 280 | 1600 | 5000/2941 | 64 | ② | |||||
| A4D400S-5DM-AN00 | 380/400 | 50 | 0.50 | 230 | 1350 | 4400/2588 | 62 | -30/+60 | ① | CCC,CE,RoHS | |
| 60 | 0.60 | 280 | 1600 | / | 5000/2941 | 64 | ② |
