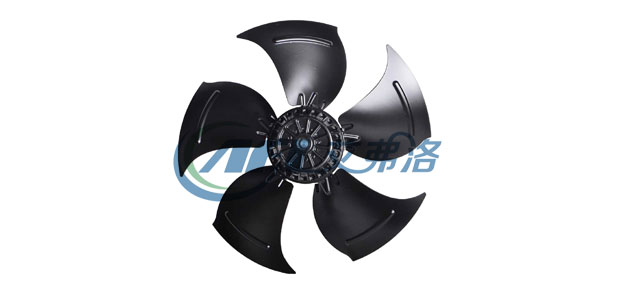

A450-5S axial fan 3000 cfm
Inquiry Form
material:Cold rolled steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

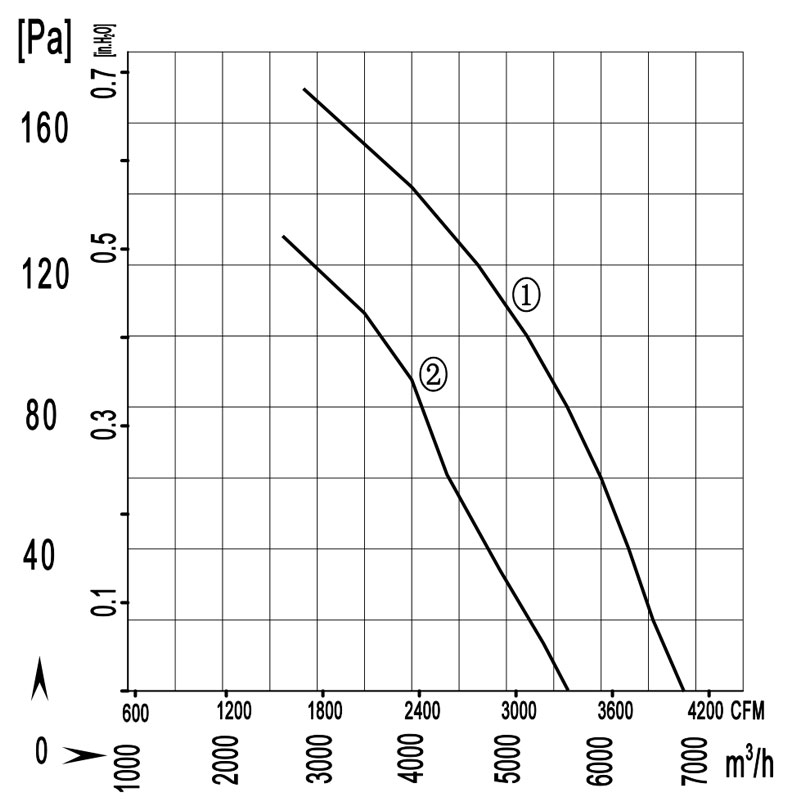

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A4E450S-5DM-AS00 | 220/230 | 50 | 2.20 | 480 | 1350 | 16 | 6800 /4000 | 66 | -30/+60 | ① | CCC,CE,RoHS |
| A4D450S-5DM-AS00 | 380/400 | 50 | 1.15 | 480 | 1350 | / | 6800/ 4000 | 66 | -30/+60 | ① | CCC,CE,RoHS |
| A4E450S-5DM-AR00 | 220/230 | 50 | 1.75 | 380 | 1350 | 6 | 5600/ 3294 | 64 | -30/+60 | ② | CCC,CE,RoHS |
| A4D450S-5DM-AR00 | 380/400 | 50 | 0.9 | 380 | 1350 | / | 5600/3294 | 64 | -30/+60 | ② | CCC,CE,RoHS |
