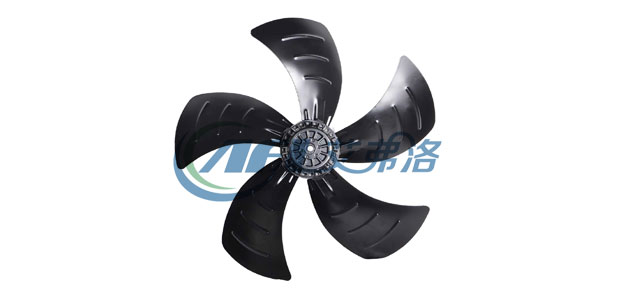

A630-5 External Rotor Motor Axial Fan
Inquiry Form
material:Cold rolled steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

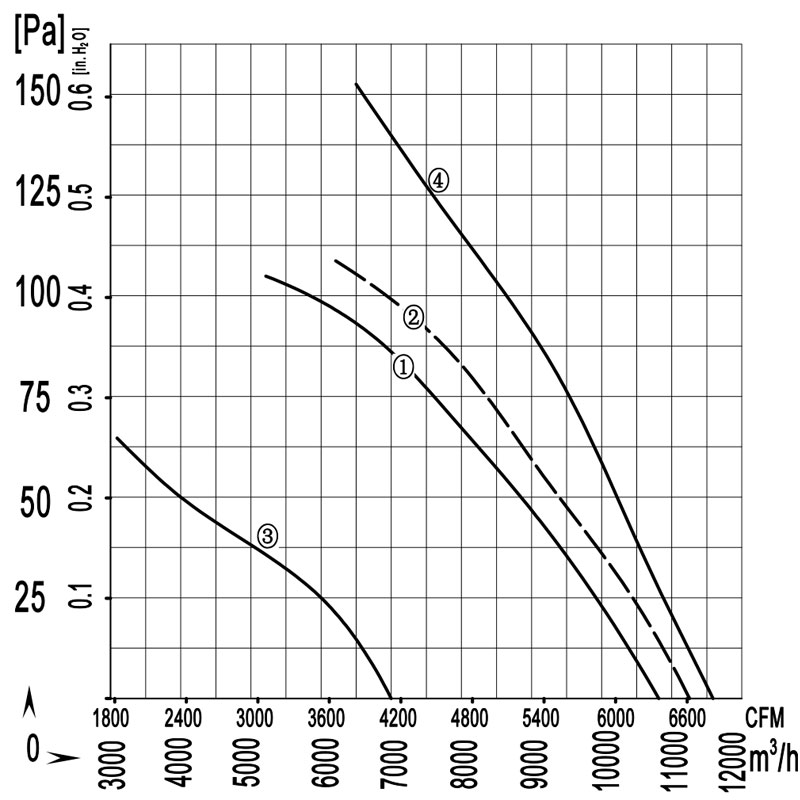

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A4D630S-5DM-AT00 | 380/400 | 50 | 1.60 | 850 | 1350 | / | 11600 / 6823 | 75 | -30/+60 | ④ | CCC,CE,RoHS |
| A6E630S-5DM-AT00 | 220/230 | 50 | 2.50 | 520 | 900 | 12 | 10700 / 6294 | 67 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 3.25 | 705 | 1050 | 11200 / 6588 | 69 | ② | |||||
| A6D630S-5DM-AT00 | 380/400 | 50 | 1.40 | 550 | 900 | / | 10700 /6294 | 67 | -30/+60 | ① | CCC,CE,RoHS |
| 60 | 1.56 | 740 | 1060 | 11200 / 6588 | 69 | ② | |||||
| A8E630S-5DM-AT00 | 220/230 | 50 | 1.3 | 250 | 680 | 6 | 7000 / 4117 | 60 | -30/+60 | ③ | CCC,CE,RoHS |
| A8D630S-5DM-AT00 | 380/400 | 50 | 0.7 | 250 | 680 | / | 7000 / 4117 | 60 |
