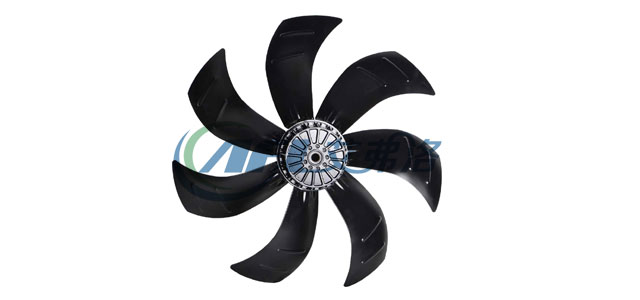

A710-7 External Rotor Motor Axial Fan
Inquiry Form
material:Cold rolled steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

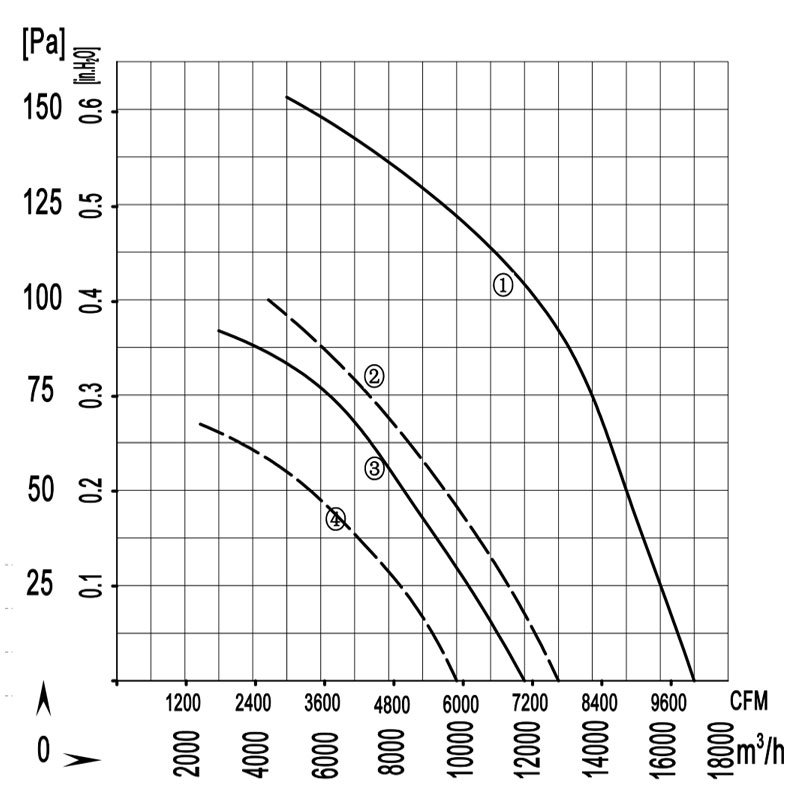

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| A6D710S-7DM-SW00 | 380/400 | 50 | 2.00 | 1100 | 900 | / | 17000/10000 | 75 | -30/+60 | ① | CCC,CE,RoHS |
| 1.40 | 750 | 600 | 12500/7353 | 68 | ② | ||||||
| A8D710S-7DM-SW00 | 380/400 | 50 | 1.50 | 700 | 700 | / | 12000/7058 | 67 | -30/+60 | ③ | CCC,CE,RoHS |
| 0.90 | 450 | 600 | 10000/ 5882 | 65 | ④ |
