B190-63 Backward Centrifugal Fan

Inquiry Form

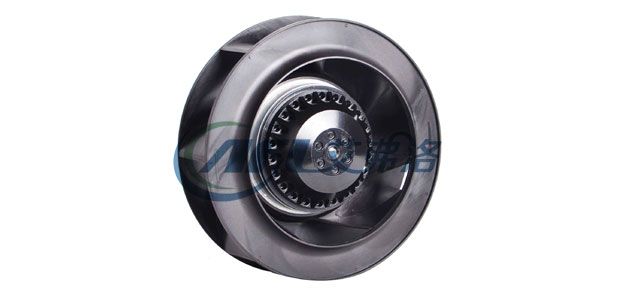

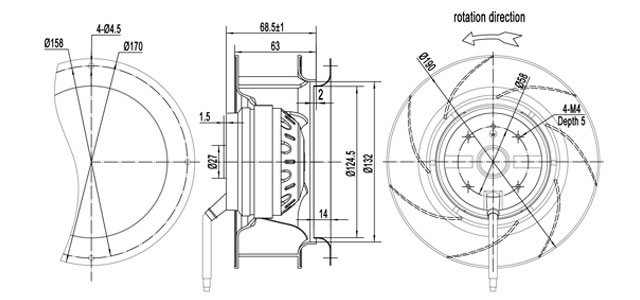

190-63-datu 190-63-erwei

Impeller material: Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(°C) #
B2E190-063A-AA00 220/230 50 0.27 60 2500 2.0 540/317 65 -30/+60 ① CCC,CE,RoHS
220/230 60 0.35 76 2700 2.0 600/350 68 -30/+60 ② CCC,CE,RoHS

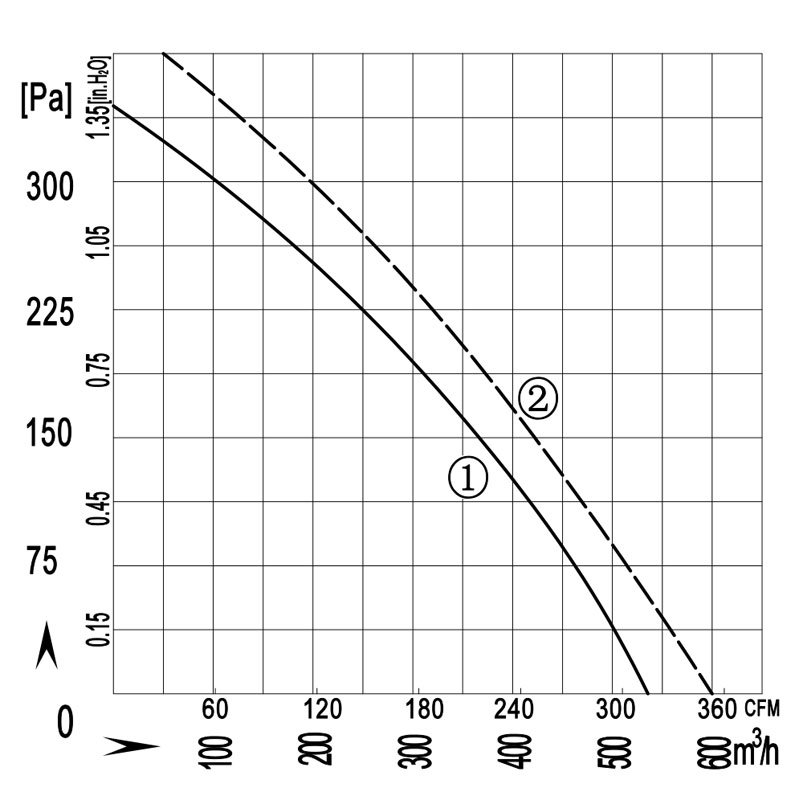

190-63-quxian
