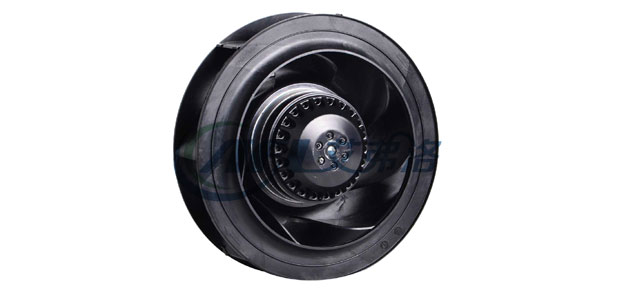

B220-64 Backward Centrifugal Fan
Inquiry Form
Impeller material: Plastic PA66
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.
| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |

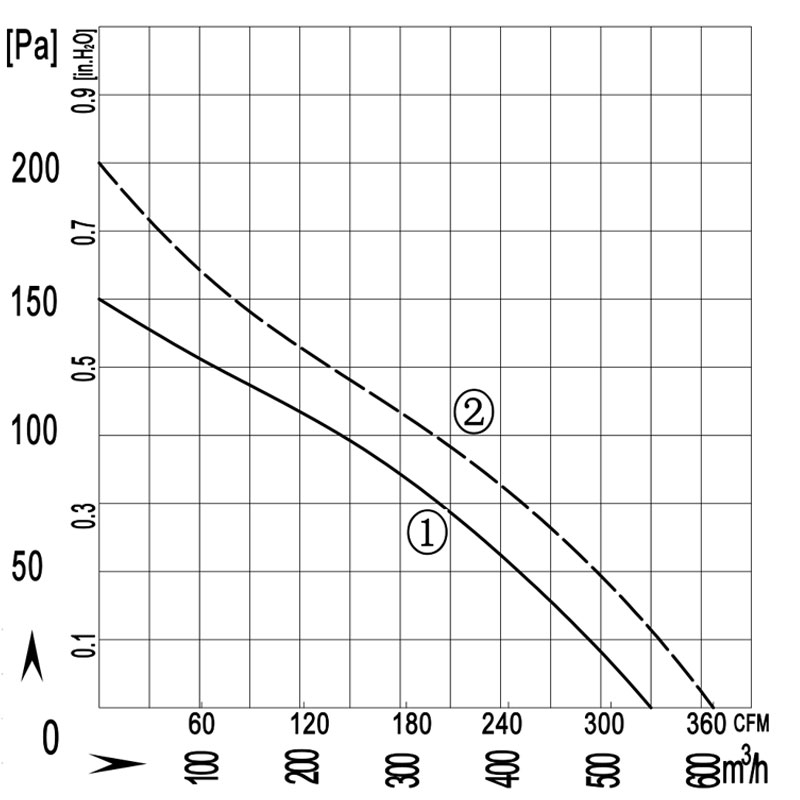

| Type | V | Hz | A | w | rpm | nF | m3/h/CFM | dB(A) | Min/Max(°C) | # | |
| B4E220-064A-ACC0 | 220/230 | 50 | 0.23 | 40 | 1420 | 1.5 | 550/323 | 52 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.19 | 41 | 1650 | 1.5 | 610/359 | 58 | -30/+60 | ② | CCC,CE,RoHS | |
| B4D220-064A-ACC0 | 220/230 | 50 | 0.08 | 38 | 1400 | / | 550/323 | 52 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.10 | 41 | 1650 | / | 610/359 | 58 | -30/+60 | ② | CCC,CE,RoHS |
