B220-64 Backward Centrifugal Fan

Inquiry Form

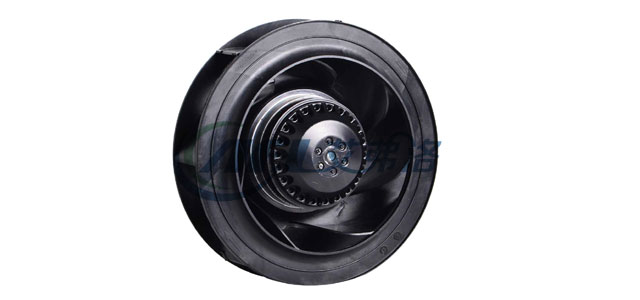

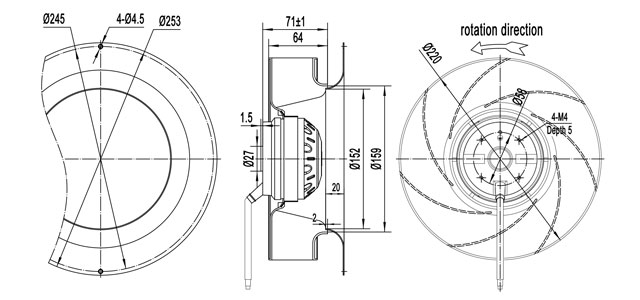

220-64-datu 220-64-erwei

Impeller material: Plastic PA66

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(°C) #
B2E220-064A-AC00 220/230 50 0.41 90 2500 2.5 910/535 70 -30/+60 ① CCC,CE,RoHS
220/230 60 0.46 100 2700 2.5 970 1 570 73 -30/+60 ② CCC,CE,RoHS
B2D220-064A-ACC0 380/400 50 0.17 85 2500 1 910/535 70 -30/+60 ① CCC,CE,RoHS
380/400 60 0.20 100 2700 1 970 1 570 73 -30/+60 ② CCC,CE,RoHS

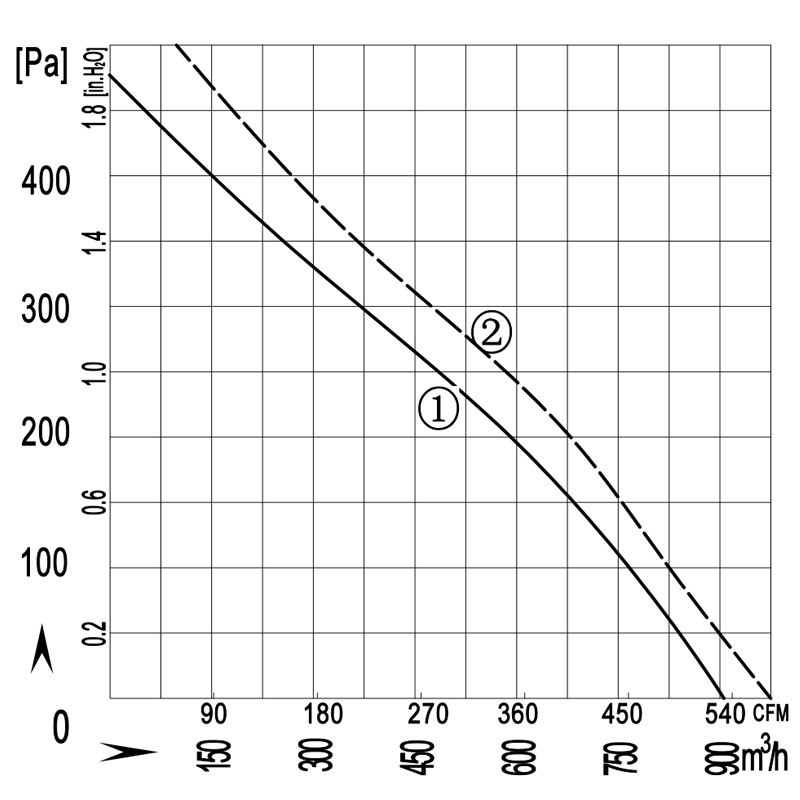

220-64-quxian
