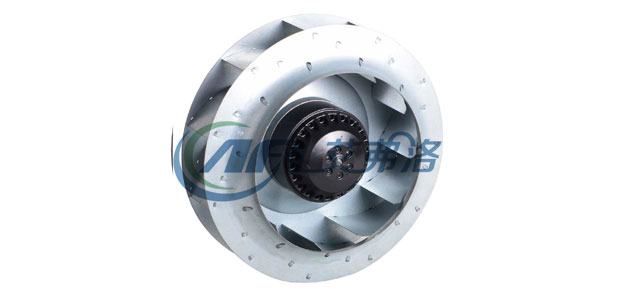

B280-080 Backward Centrifugal Fan

Inquiry Form

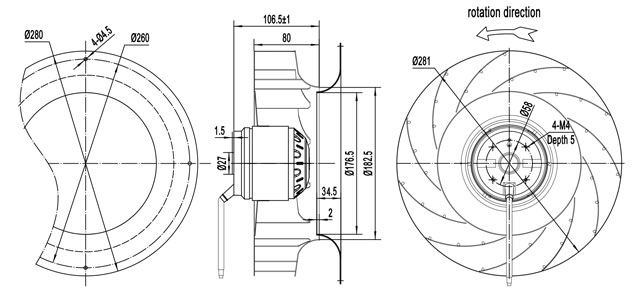

280-080-datu 280-080-erwei

Impeller material: Plastic PA66 50

Protection Class: IP44

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/MaxfC) #
B2E280-080A-AG00 220/230 50 1.1 230 2450 6 1800/1056 79 -30/+60 ① CCC,CE,RoHS
B2D280-080A-AGC0 380/400 50 0.6 200 2500 / 1800/1056 79 -30/+60 ① CCC,CE,RoHS
B4E280-080A-AEC0 220/230 50 0.35 68 1380 2.5 1050/617 62 -30/+60 ① CCC ,CE,RoHS

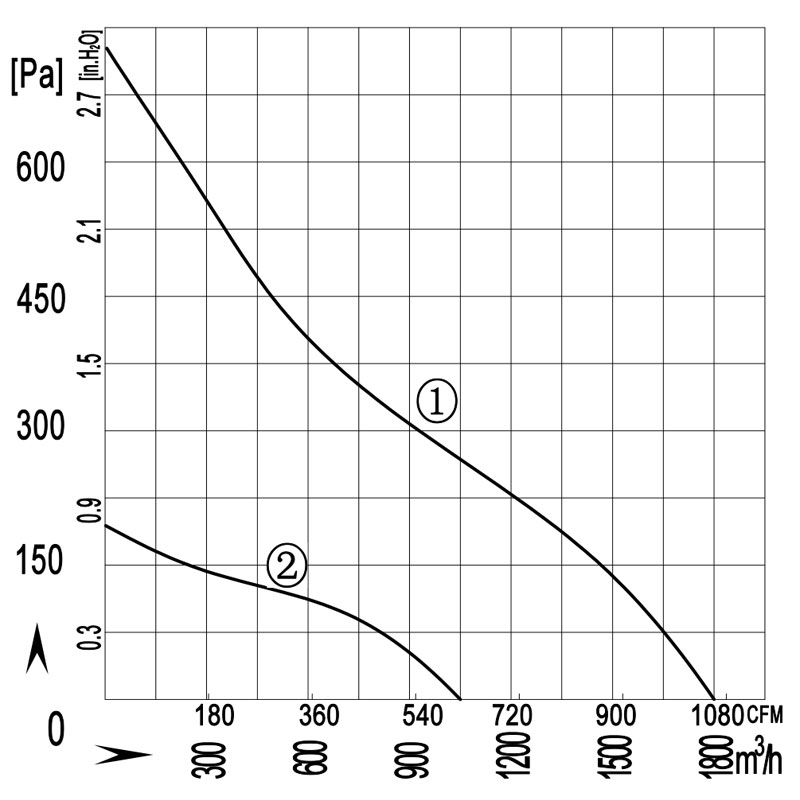

280-080-quxian
