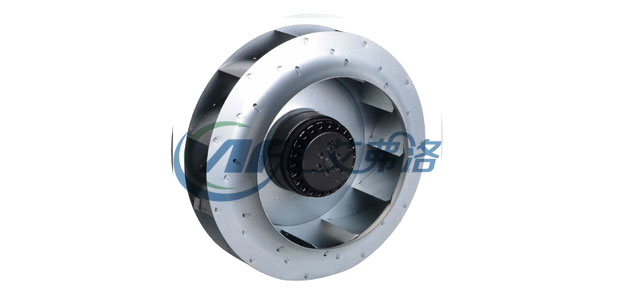

B280-110 large capacity Backward Centrifugal Fan
Inquiry Form
Impeller material:Galvanised sheet steel
Protection Class: IP44
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

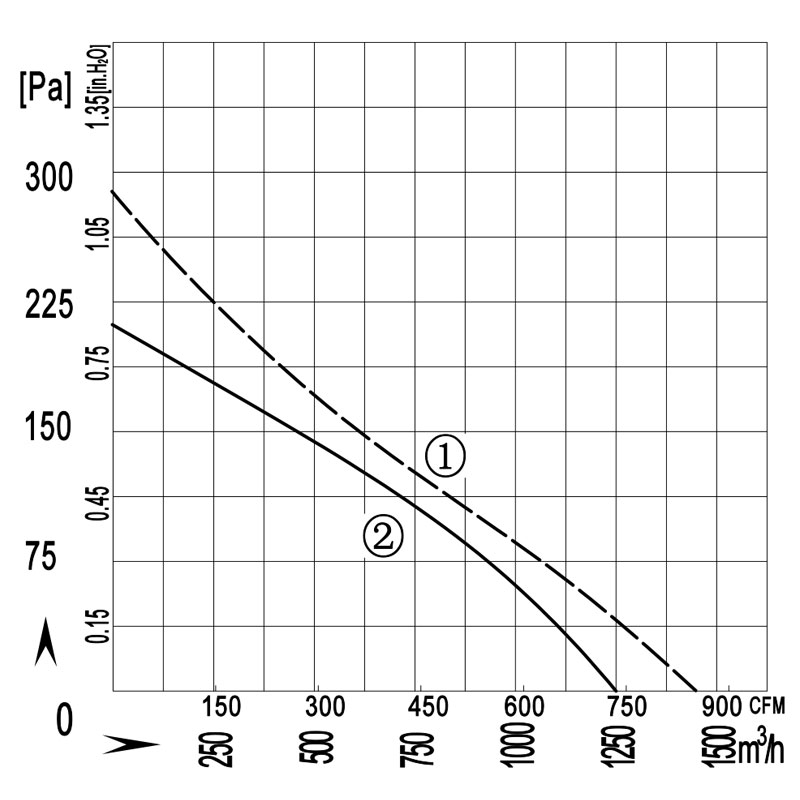

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | wF | m3/h/CFM | dB(A) | Min/Max(TC) | # | |
| B4E280-110A-AEC0 | 220/230 | 50 | 0.38 | 80 | 1350 | 3 | 1230/ 723 | 63 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.45 | 100 | 1500 | 3 | 1400/ 823 | 66 | -30/+60 | ② | CCC,CE,RoHS |
