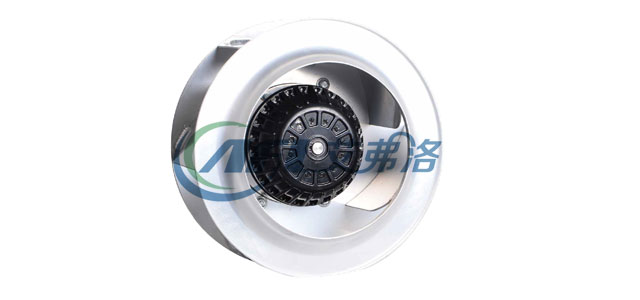

B280-135 galvanized sheet steel Backward Centrifugal Fan
Inquiry Form
Impeller material:Galvanised sheet steel
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

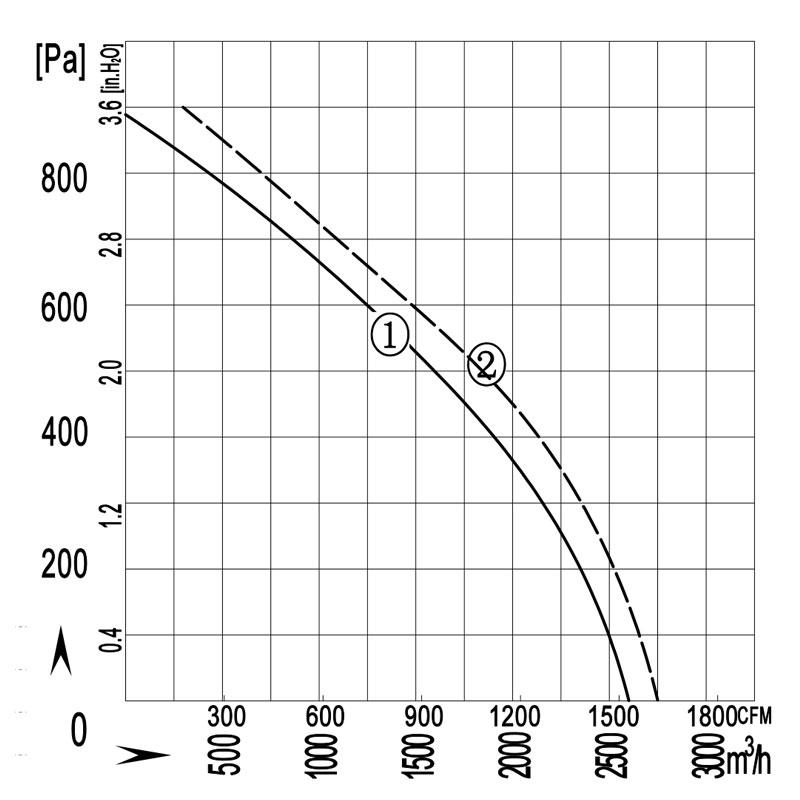

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | mJ/h/CFM | dB(A) | Min/Max(r) | # | |
| B2D280-135A-AS00 | 380/400 | 50 | 0.95 | 500 | 2750 | / | 2600/1529 | 78 | -30/+60 | ① | CCC,CE,RoHS |
| 400 | 60 | 1.60 | 680 | 2900 | / | 2700/1588 | 80 | -30/+60 | ② | CCC,CE,RoHS |
