B315-135 External Rotor Backward Centrifugal Fan

Inquiry Form

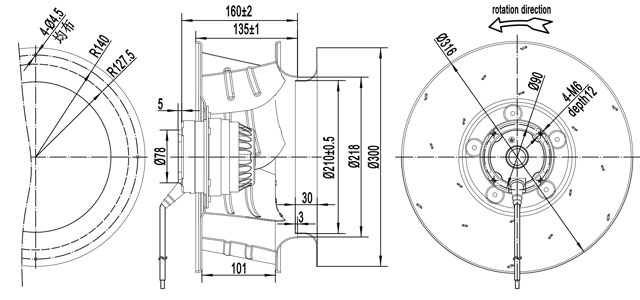

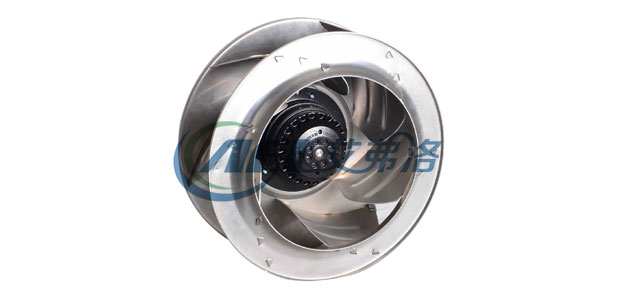

315-135-datu 315-135-erwei

material:Sheet aluminium

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B4E315-135A-AL00 220/230 50 0.60 135 1400 3 1900/1117 63 -30/+60 CCC,CE,RoHS
220/230 60 0.80 180 1580 3 2000/1175 65 -30/+60
B6E315-135A-AL00 220/230 50 0.38 75 940 3 1000/588 58 -30/+60 CCC,CE,RoHS
220/230 60 0.42 85 1050 3 1100/647 60 -30/+60
B4D315-135A-AL00 380/400 50 0.35 136 1400 / 1900/1117 63 -30/+60 CCC,CE,RoHS
380/401 60 0.40 175 1580 / 2000/1175 65 -30/+60

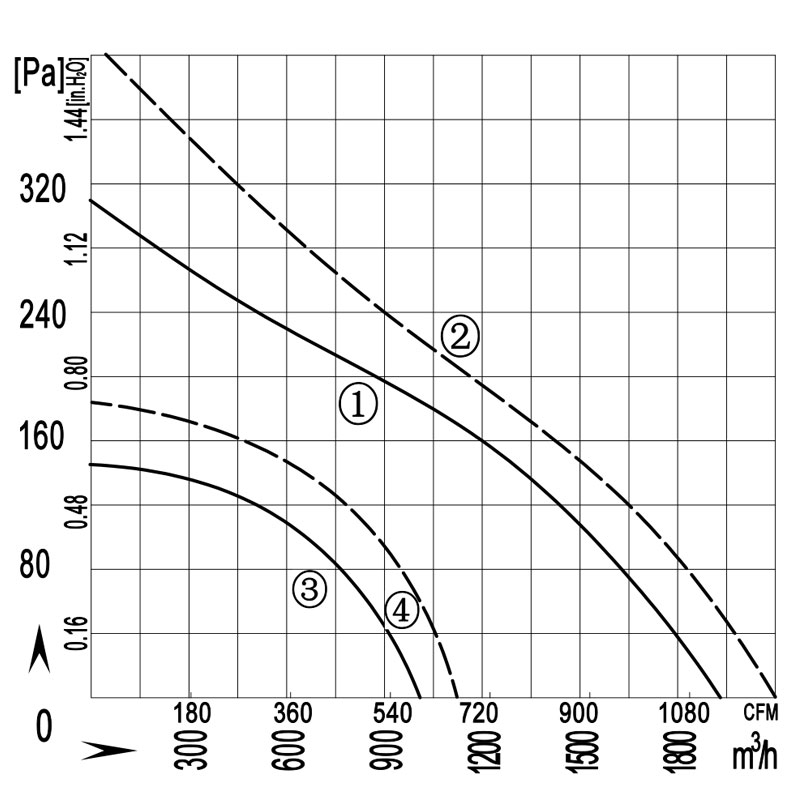

315-135-quxian
