B4D355-164A-AS00 Galvanized backward curved centrifugal fan

Inquiry Form

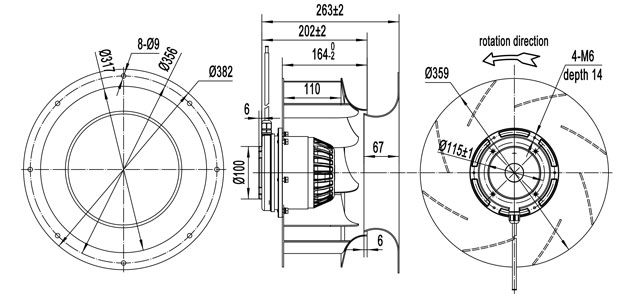

355-164-datu 355-164-erwei

material:Sheet aluminium

Protection Class: IP54

Approvals: CCC CE

Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

Voltage Frequency Current Input Power Speed Capacitor Air Flow Noise Temperature  Curve No.  Approvals
Type V Hz A W rpm uF m3/h/CFM dB(A) Min/Max(℃) #
B4D355-164A-AS00 380/400 50 0.90 240 1450 / 3300/1941 72 -30/+75 CCC,CE,RoHS
380/400 60 0.85 350 1700 / 3900/2294 77 -30/+75

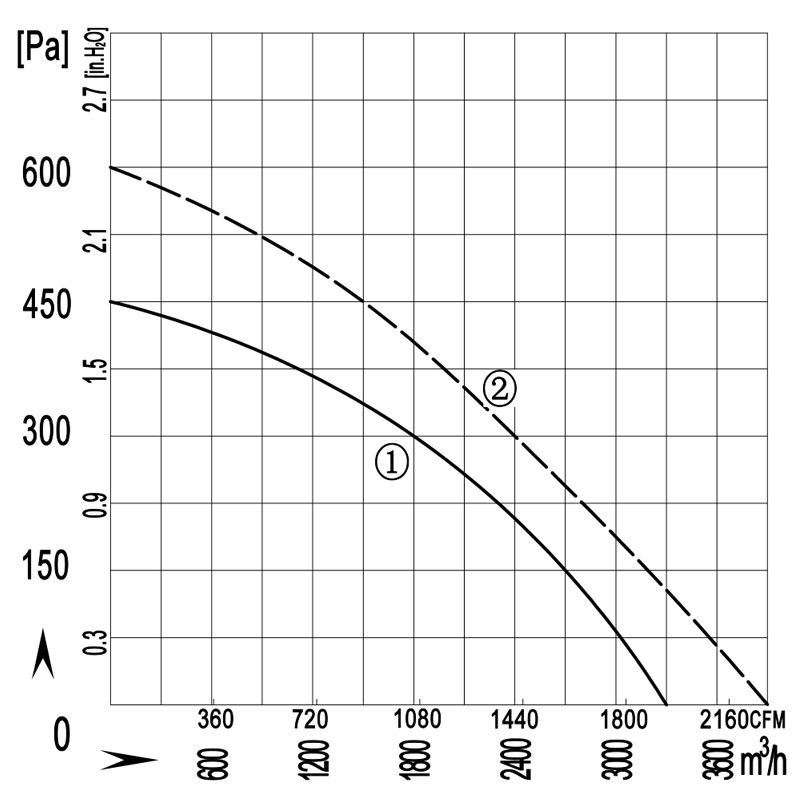

355-164-quxian
