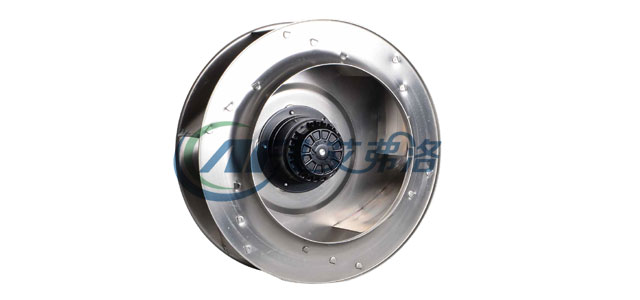

220/230 Forward backward curved Aluminum centrifugal fan
Inquiry Form
material:Sheet aluminium
Protection Class: IP54
Approvals: CCC CE
Insulation class: F
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.

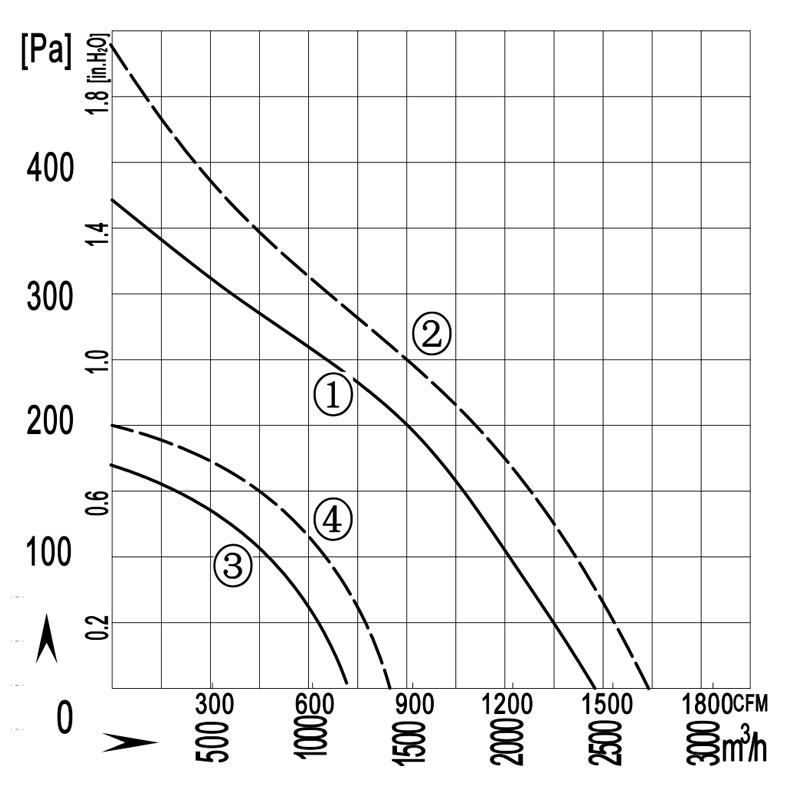

| Voltage | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Temperature | Curve No. | Approvals | |
| Type | V | Hz | A | W | rpm | uF | m3/h/CFM | dB(A) | Min/Max(℃) | # | |
| B4E400-147A-AN00 | 220/230 | 50 | 1.20 | 260 | 1350 | 7 | 2850/1675 | 64 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 1.50 | 330 | 1450 | 6 | 2950/1735 | 68 | -30/+60 | ① | ||
| B6E400-147A-AN00 | 220/230 | 50 | 0.72 | 135 | 940 | 6 | 2100/1235 | 56 | -30/+60 | ① | CCC,CE,RoHS |
| 220/230 | 60 | 0.85 | 155 | 1050 | 6 | 2250/1323 | 57 | -30/+60 | ④ |
