Meterial: Sheet steel
Type of protection: IP42
Approvals: CCC CE
Insulation class: B
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.
AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Specifications | |||||||
Type | Curve | Nominal voltage | Speed | Power input | Current draw |
Sound pressure level | Perm. amb. temp. |
[VDC] | [rpm] | [W] | [A] | [dB] | [℃] | ||
A3P200-DC092-*** | ① | 24 | 3000 | 55 | 2.3 | 60 | -25〜+60 |
48 | 3000 | 55 | 1.15 | 60 | -25〜+60 |

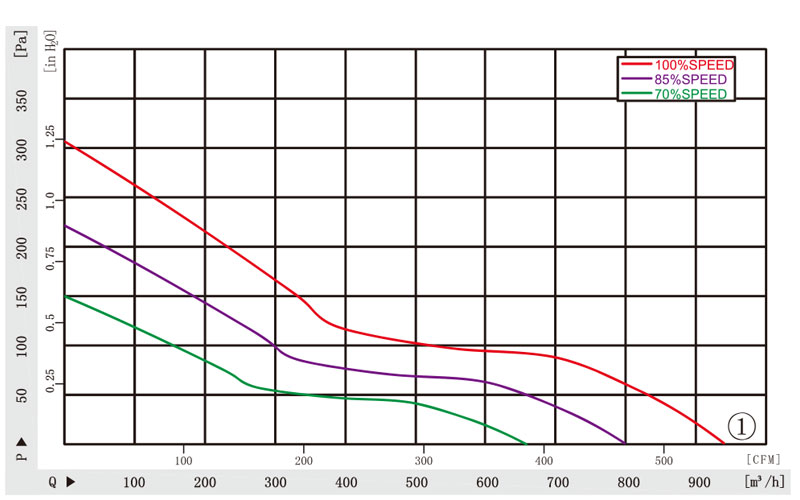

Curves
SIGNAL | COLOR | SPEC |
Vs | RED | DC48V |
Vsp | YELLOW | 0-10VDC/PM |
GND | BLUE | GND |
TACH | WHITE | 3 Pulse/R |

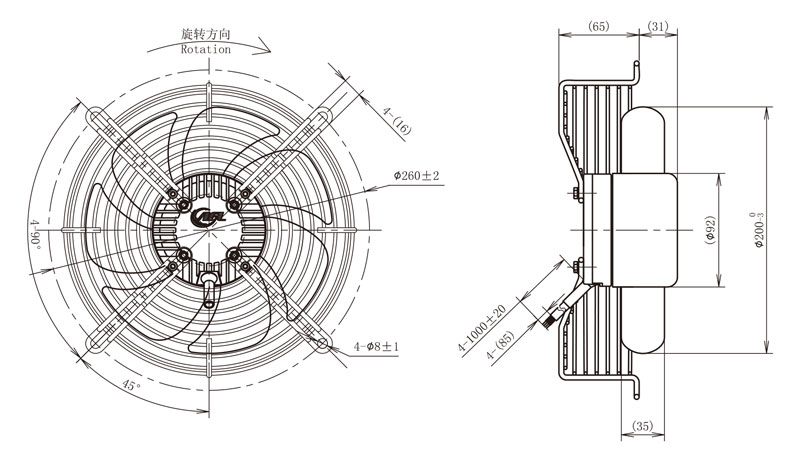

With wall concave net cover grill | |
Nominal voltage VDC 48V | A3P200-DC092-000 Suction |
A3P200-DC092-001 Blowing |
With wall concave net cover grill | |
Nominal voltage VDC 24V | A3P200-DC092-002 Suction |
A3P200-DC092-003 Blowing |

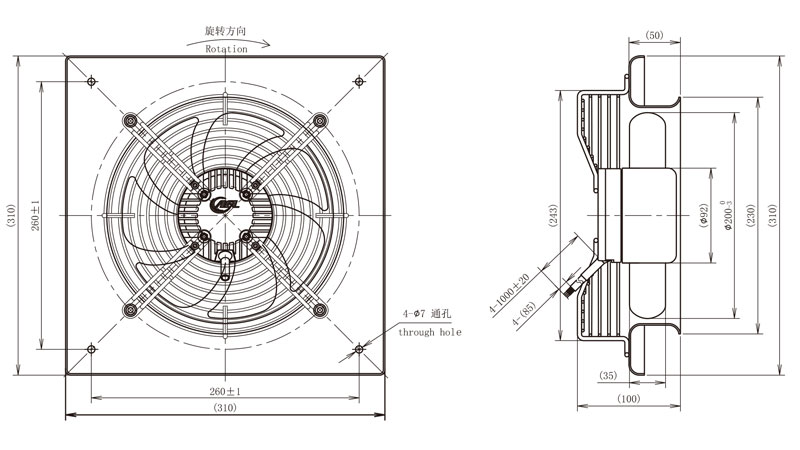

With wind guide panel | |
Nominal voltage VDC 48V | A3P200-DC092-004 Suction |
A3P200-DC092-005 Blowing |
With wind guide panel | |
Nominal voltage VDC 24V | A3P200-DC092-006 Suction |
A3P200-DC092-007 Blowing |
