DC 250mm Axial industrial Fans

Inquiry Form

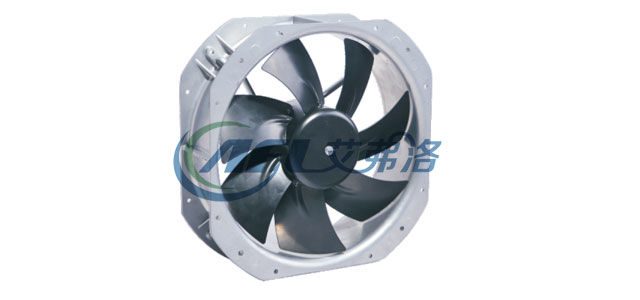

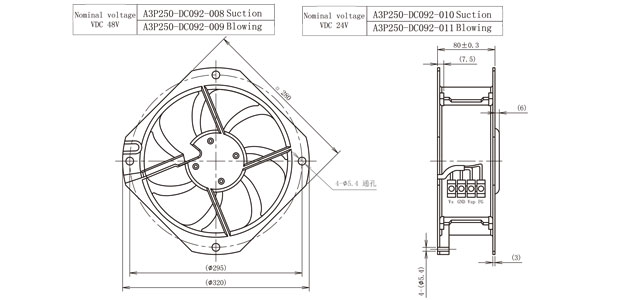

DCA250W-datu DCA250W-erwei

Meterial: Sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B

Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

 Specifications
Type Curve Nominal voltage Speed Power input Current
draw
Sound pressure level Perm. amb. temp.
[VDC] [rpm] [W] [A] [dB] [℃]
A3P250-DC092-*** 24 2750 105 4.4 70 -25〜+60
48 2750 105 2.2 70 -25〜+60

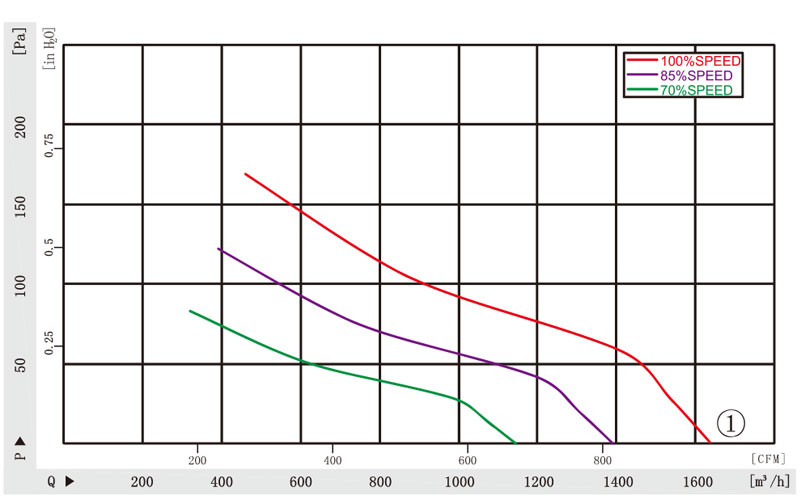

Curves

SIGNAL COLOR SPEC
Vs RED DC48V
Vsp YELLOW 0-10VDC/PM
GND BLUE GND
TACH WHITE 3 Pulse/R

DCA250W-quxian
