DC 300mm air conditioning fan motor price

Inquiry Form

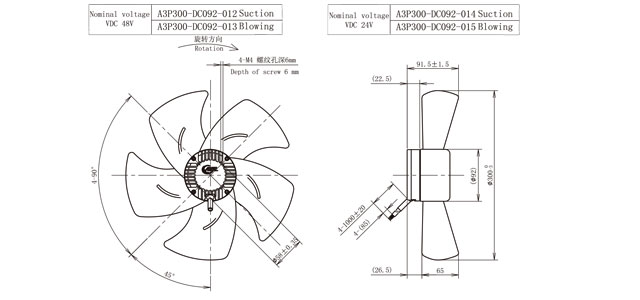

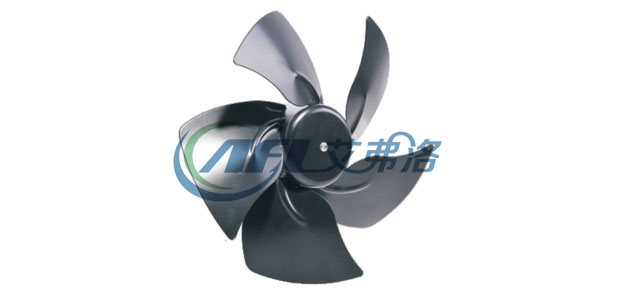

DCA300X-datu DCA300X-erwei

Meterial: Sheet steel

Type of protection IP42

Approvals CCC CE

Insulation class B
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.

Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.

AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.

 Specifications
Type Curve Nominal voltage Speed Power input Current
draw
Sound pressure level Perm. amb. temp.
[VDC] [rpm] [W] [A] [dB] [℃]
A3P300-DC0924-*** 24 1770 95 3.96 64 -25〜+60
48 1770 95 1.98 64 -25〜+60

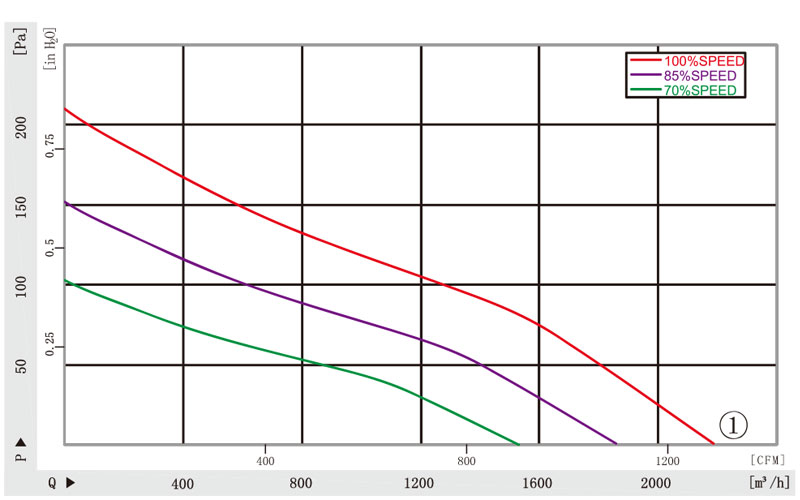

Curves

SIGNAL COLOR SPEC
Vs RED DC48V
Vsp YELLOW 0-10VDC/PM
GND BLUE GND
TACH WHITE 3 Pulse/R

DCA300X-quxian

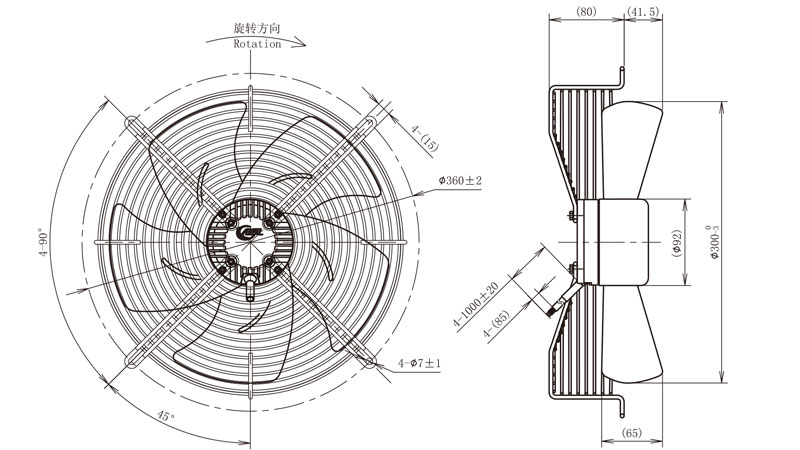

With wall concave net cover grill
Nominal voltage VDC 48V A3P300-DC092-000 Suction
A3P300-DC092-001 Blowing
With wall concave net cover grill
Nominal voltage VDC 24V A3P300-DC092-002 Suction
A3P300-DC092-003 Blowing
DCA300X-erwei1

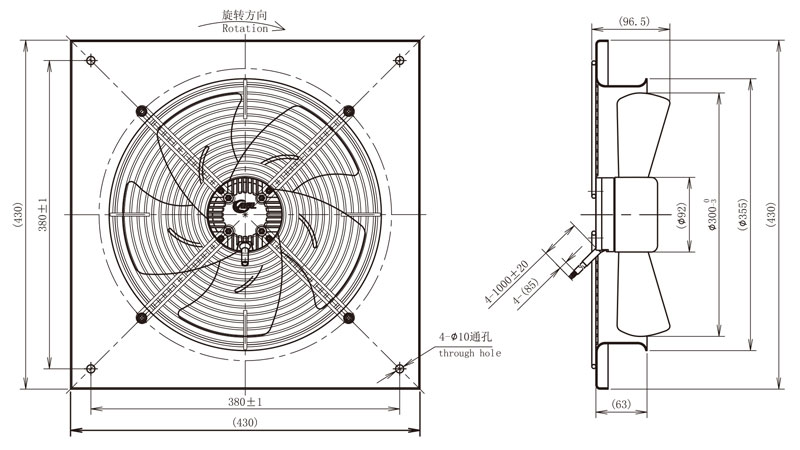

With wind guide panel
Nominal voltage VDC 48V A3P300-DC092-004 Suction
A3P300-DC092-005 Blowing
With wind guide panel
Nominal voltage VDC 24V A3P300-DC092-006 Suction
A3P300-DC092-007 Blowing
DCA300X-erwei2
