Meterial: Sheet steel
Type of protection: IP42
Approvals: CCC CE
Insulation class: B
Characteristic
1.Applicable to high airflow;
2.Applicable to low pressure;a
3.Applicable to small system resistance occasions.
Application
1.Condensers, Evaporators;
2.Chillers, Cooling Units;
3.Air-conditioning Fans;
4.Exhaust Ventilation;
5.Cold Storage.
AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Specifications | |||||||
Type | Curve | Nominal voltage | Speed | Power input | Current draw |
Sound pressure level | Perm. amb. temp. |
A3P200-DC092-*** | [DC] | [rpm] | [W] | [A] | [dB] | [℃] | |
① | 310 | 3000 | 55 | 0,17 | 60 | -25〜+60 |

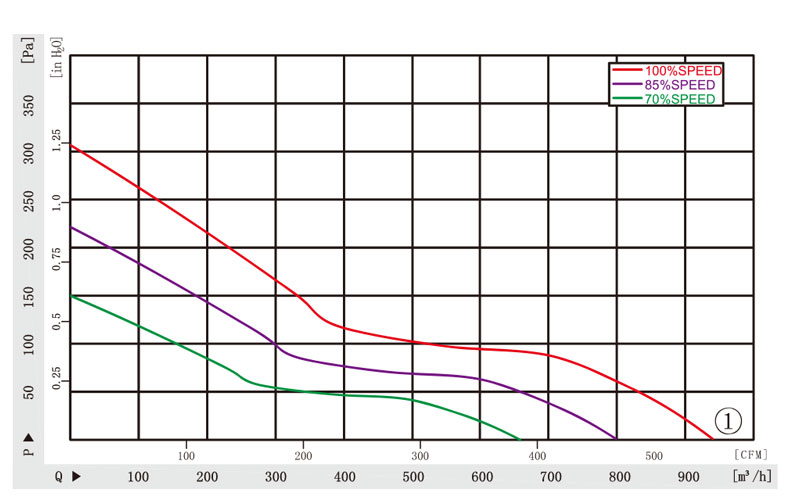

Curves
SIGNAL | COLOR | SPEC |
Vs | RED | DC310V |
GND | BLACK | GND |
Vcc | WHITE | DC15V |
Vsp | YELLOW | 0-10VDC/PWM |
TACH | BLUE | 12 Pulse/R |
