Meterial: Sheet aluminium
Type of protection: IP42
Approvals: CCC CE
Insulation class: B
Characteristic
1.Applicable to high airflow;
2.Applicable to high pressure;
3.Applicable to large system resistance;
4.Applicable to high requirement of noise level applications.
Application
1.Air Purification;
2.Ventilating Units;
3.Heat Pumps, Ground Source Heat Pumps, Air Source Heat Pumps;
4.Roof Fans;
5.Filtering, FFU.
AFL EC technology advantages:
1.Professional EC R&D engineer team;
2.AFL PCB design;
3.World top three electric components supplier;
4.CE certification approval;
5.Higher efficiency 60~80%;
6.More energy saving;
7.Lower waste;
8.Low Temperature rise;
9.More stable.
Specifications | |||||||
Type | Curve | Nominal voltage | Speed | Power input | Current draw |
Sound pressure level | Pemamb. terap. |
B3P310-DC102-000 | [VDC] | [rpm] | [w] | [A] | [dB] | [℃] | |
① | 48 | 2000 | 190 | 4. 0 | 71 | -25〜+60 |

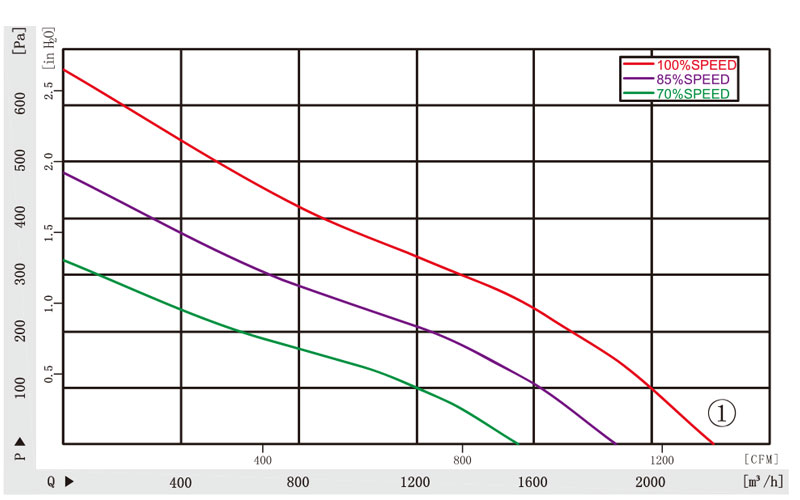

Curves
SIGNAL | COLOR | SPEC |
Vs | RED | DC48V |
GND | BLACK | GND |
Vcc | WHITE | DC15V |
Vsp | YELLOW | 0-10VDC/PWM |
TACH | BLUE | 3 Pulse/R |
